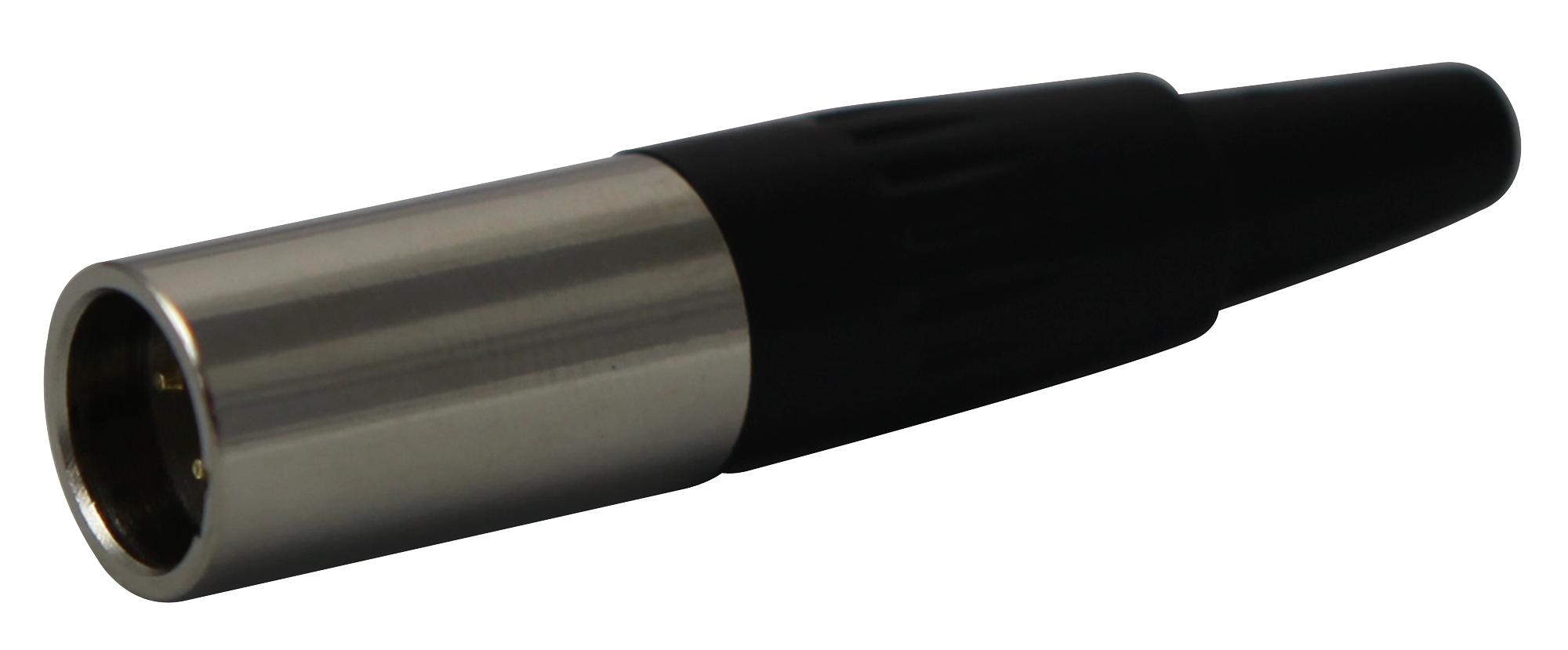

MULTICOMP PRO SVP555TA Mini XLR Connector
The SVP555-TA is a 3-contact Mini XLR plug designed for professional audio connections, featuring a nickel-plated chuck, brass shell, gold-plated pins, and PBT insulator. Its compact 3mm outer diameter makes it ideal for high-quality audio equipment, providing reliable electrical contact with excellent durability, resistance to soldering heat, and polarization for secure fitment. This connector complies with RoHS standards and has been tested for electrical and mechanical performance, including contact resistance, insulation resistance, dielectric strength, and durability, ensuring dependable signal transmission and long-lasting use in audio systems.
MULTICOMP PRO SVP555TA Mini XLR Connector Specifications:
- Dimensions: Outer diameter 3mm, length 20.02mm, width 62.2mm, height 40.1mm
- Material: Brass shell H59-1, pin H59-1 gold-plated, insulation PBT, plastic cover PE, chuck H62 nickel, cap ABS, boot PVC
- Electrical: Current rating 5A at 50V AC, contact resistance 30mΩ, insulation resistance 100MΩ, dielectric strength 100V @ 60s
- Mechanical: Connection/disconnection force <59N, durability tested for multiple cycles, solderability >75%, withstands soldering heat at 260°C for 3 seconds
- RoHS compliant, meeting standards for environmental and safety regulations
Buy the Multicomp Series Mini XLR Connector: SVP555TA
Shop the Mini XLR connector online today to ensure your audio projects benefit from high-quality, reliable connections. Designed with precision-engineered components like gold-plated pins, brass shell, and insulating materials, this connector guarantees excellent durability, stable signal transfer, and compliance with RoHS standards. Whether for professional audio equipment, stage setups, or recording studios, the SVP555TA offers quick and secure connection, long-lasting performance, and high resistance to environmental factors. Order now to enhance your audio system with this dependable, compact connector designed for demanding audiophile and professional applications.
Get Multicomp Series SVP555TA today—built for precision audio connections and lasting durability.
Frequently Asked Questions
Where can I buy MULTICOMP PRO SVP555TA?
You can click on the BUY or RFQ button to purchase SVP555TA from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part SVP555TA?
You can download the SVP555TA datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of SVP555TA?
MULTICOMP PRO
