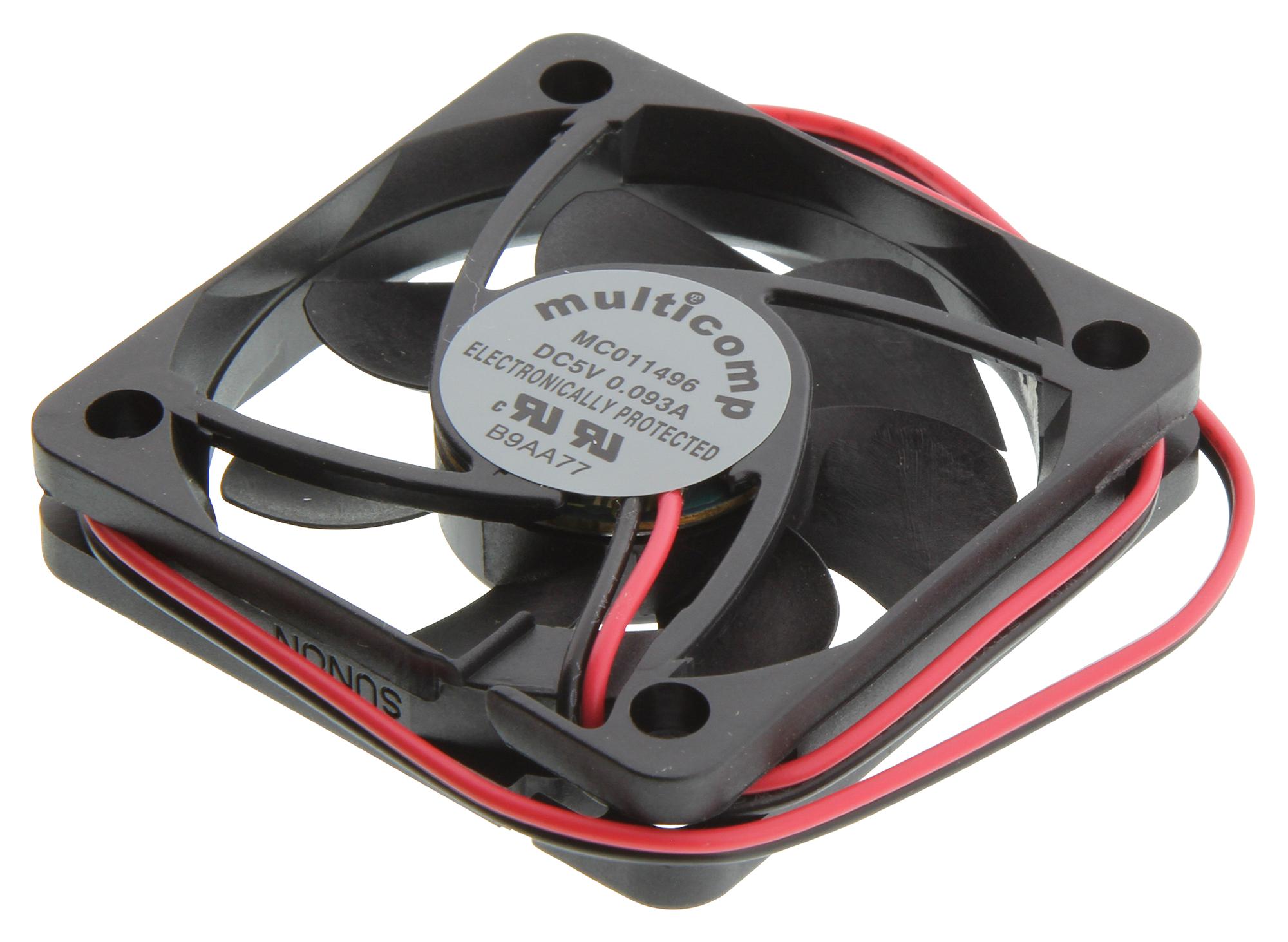

MULTICOMP MC011496 Axial Cooling Fan
These axial DC fans feature a Vapo bearing system and are designed for efficient airflow in compact applications. Available in 5V and 12V variants, they operate at approximately 4800 RPM with a sound level of 25.6 dB(A). Crafted from UL94V-0 thermoplastic PBT, they include mounting holes and a durable construction suitable for temperatures from -10°C to +70°C. Each fan weighs 19.5g and provides a static pressure of 0.11 Inch-H20, making them ideal for cooling electronic devices, control cabinets, and industrial equipment.
MULTICOMP MC011496 Axial Cooling Fan Specifications:
- Dimensions: 50mm x 50mm x 10mm
- Material of Frame: Thermoplastic PBT of UL94V-0
- Material of Fan Blade: Thermoplastic PBT of UL94V-0
- Bearing System: Vapo bearing system
- Direction of Rotation: Counter-clockwise viewed from front
- Mounting Holes Diameter: 4.3 mm in 8 holes
- Rated Voltage: 5V DC / 12V DC
- Rated Current: 85mA / Max 98mA at 5V; 50mA / Max 58mA at 12V
- Rated Power Consumption: 0.43W / Max 0.49W at 5V; 0.6W / Max 0.7W at 12V
- Rated Speed: 4800 RPM ±15%
- Air Flow: 11 CFM
- Static Pressure: 0.11 Inch-H20
- Acoustic Noise: 25.6 dB(A)
- Operating Temperature Range: -10°C to +70°C
- Life Expectancy: 60,000 hours @ 40°C, 65% humidity, 90% CL
- Safety: UL, CE, TUV certified
- Insulation Class: UL Class A
- Protection: Automatic Restart, Polarity Protection
Buy the Buy multicomp Axial DC Fan Part Number MC011496 Online
Enhance your electronic cooling systems with our multicomp axial DC fan, featuring Vapo bearing technology and a compact 50x50x10mm size. Operating efficiently at 4800 RPM, this fan ensures quieter operation at 25.6 dB(A) and offers long-lasting durability with an expected lifespan of 60,000 hours. Suitable for a wide temperature range from -10°C to +70°C, it is perfect for industrial equipment, control panels, and electronics cooling. Easy to install, rated for 5V or 12V operation, and UL certified for safety and reliability. Buy now online to ensure seamless integration into your projects and maintenance-friendly performance.
Order your multicomp SeriesMC011496 axial DC fan today and experience reliable cooling performance for your electronic projects and industrial applications.
Frequently Asked Questions
Where can I buy MULTICOMP MC011496?
You can click on the BUY or RFQ button to purchase MC011496 from an authorized MULTICOMP distributor.
How do I troubleshoot issues or seek technical support for part MC011496?
You can download the MC011496 datasheet or visit the MULTICOMP website for support.
Who is the manufacturer of MC011496?
MULTICOMP
