MURATA POWER SOLUTIONS MGJ6D241510DC Gate Drive Converter
The MGJ6D241510DC is a Murata Power Solutions MGJ6 series 5.2 kV DC isolated gate drive DC-DC converter. It provides a 6W output with high isolation, offering configurable dual output voltages suitable for powering high-side and low-side gate drive circuits for IGBTs in bridge configurations. Designed without opto feedback, it features continuous short circuit protection, overload protection, and characterized dv/dt immunity and partial discharge performance at 1.6 kV. The converter handles high isolation and dv/dt requirements common in motor drives and inverters, with a disable/frequency synchronization pin for simplified EMC filter design. It supports a line regulation of 2% and total regulation of 15%, with an input voltage range of 18V to 36V (nominal 24V) at 300mA input current. It offers two configurable output voltages—15V at 240mA (3.6W) and -10V at 240mA (2.4W)—with typical load regulation of 5% and maximum 10%, ripple and noise of 150mVp-p and 200mVp-p respectively. The device has an efficiency of 80% minimum, dimensions of 45.47mm x 27.81mm x 9.88mm, weighs 12g, and operates over temperatures from -40°C to 105°C. It is suitable for power management and industrial applications.
MURATA POWER SOLUTIONS MGJ6D241510DC Gate Drive Converter Specifications:
- Input Voltage Range: 18V to 36V (nominal 24V), 300mA input current
- Output Power: 6W total, configurable dual outputs (+15V/−10V)
- Output Current: 240mA at 15V, 240mA at -10V
- Output Ripple & Noise: 150mVp-p and 200mVp-p respectively
- Line Regulation: 2%, Total Regulation: 15%
- Efficiency: ≥80%
- Isolation Voltage: 5.7kVDC, tested at 1 second, qualified at 1 minute
- Operating Temperature Range: −40°C to 105°C
- Dimensions: 45.47mm x 27.81mm x 9.88mm
- Weight: 12g
- Protection Features: Continuous short circuit, overload
- Reliability: Characterized dv/dt immunity, partial discharge at 1.6kV
- Application: Gate drive power for IGBTs, SiC & MOSFETs in bridge circuits, industrial power management

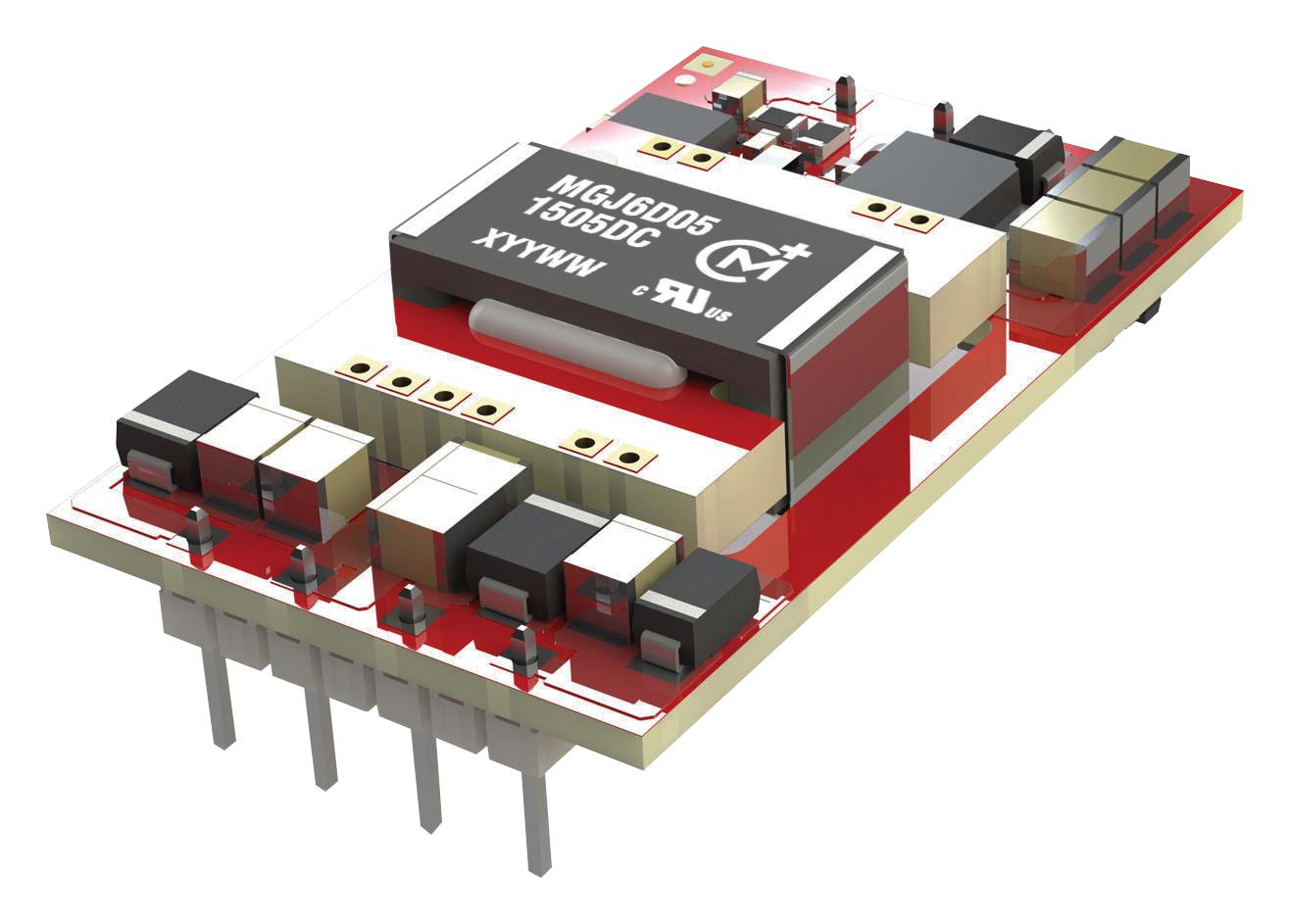

Buy the Buy Murata MGJ6D241510DC Part Number MGJ6D241510DC Online
