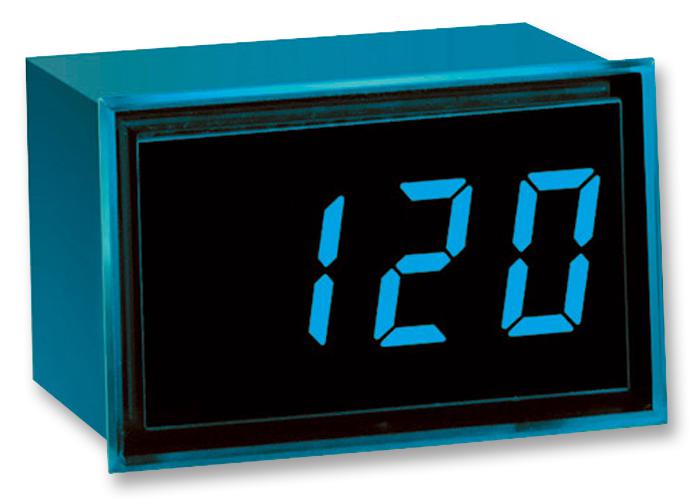

MURATA POWER SOLUTIONS DMS20PC0DCMBC DC Voltage Monitor
The Murata Power Solutions DMS-20PC-DCM series are self-powered LED voltmeters designed to replace traditional analog panel meters. They feature clear, 0.37-inch red, blue, or green LED displays with high resolution for easy readability from 15 feet. These voltage monitors operate over a wide input range from 4.50V to 264V DC, with low power consumption, robust polycarbonate cases, and reverse polarity protection. They are suitable for various industrial, automation, and control applications, with durable construction and compatibility with Murata's panel cutouts. These devices are ideal for accurate, reliable DC voltage monitoring without external power supplies.
MURATA POWER SOLUTIONS DMS20PC0DCMBC DC Voltage Monitor Specifications:
- Input Voltage Range: +4.50 to +19.99Vdc, +8.0 to +50.0Vdc, +30 to +264Vdc models
- Current Consumption: 13mA (max) for lower voltage models, 7mA (max) for higher voltage models
- Display Type: 3 and 3½ digit, LED, 0.37/9.4mm high
- Dimensions: 1.38 inches x 0.88 inches x 1.00 inches
- Case Material: Polycarbonate
- Weight: 1 ounce (28 grams)
- Operating Temperature: -25°C to +60°C
- Storage Temperature: -40°C to +75°C
- Humidity: 0 to 95% non-condensing
- Panel cutout: 1.336 inches W x 0.838 inches H
- Built-in reverse polarity protection
- High-resolution A/D converter and metal-film resistors ensure accuracy
- Simple installation with brass screws and panel-mount bezel options
Buy the Buy Murata DMS-20PC-DCM Part Number DMS20PC0DCM Online
Order the Murata DMS-20PC-DCM series online for reliable, accurate DC voltage measurement. These self-powered monitors feature bright LED displays, minimal power consumption, and robust construction suitable for industrial environments. Easy to install with panel mounting options, they offer a wide input range from 4.50V to 264V DC, making them perfect replacements for analog meters. Ensure precise voltage monitoring in your automation or control systems—purchase now for fast delivery and exceptional performance.
Get Murata DMS-20PC-DCM today—built for precise DC voltage monitoring with rugged, easy-to-read LED displays.
Frequently Asked Questions
Where can I buy MURATA POWER SOLUTIONS DMS20PC0DCMBC?
You can click on the BUY or RFQ button to purchase DMS20PC0DCMBC from an authorized MURATA POWER SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part DMS20PC0DCMBC?
You can download the DMS20PC0DCMBC datasheet or visit the MURATA POWER SOLUTIONS website for support.
Who is the manufacturer of DMS20PC0DCMBC?
MURATA POWER SOLUTIONS
