MURATA POWER SOLUTIONS MYPMA01218RCFCCB High Power Non-isolated DC-DC Converter
The MYPMA01218RCF-CCB is a compact, high-efficiency non-isolated DC-DC converter designed for versatile industrial and automotive lighting applications. It delivers 216W power at 12V output with a secondary 5V/1A auxiliary supply, featuring low ripple and surge, over-temperature, over-current, and short circuit protection. Packaged in IP56-rated, vibration-proof, lightweight plastic enclosure, it operates efficiently from 36V to 75V input within -20°C to +85°C. It is suitable for e-mobility, lighting, and industrial automation, ensuring reliable and durable performance in harsh environments.
MURATA POWER SOLUTIONS MYPMA01218RCFCCB High Power Non-isolated DC-DC Converter Specifications:
- Output Power: 216W (peak 216W)
- Output Voltage: 12V main, 5V auxiliary
- Auxiliary Output Current: 1A
- Input Voltage Range: 36V to 75V
- Efficiency: Up to 95%
- Ripple Voltage: Max 540mVp-p
- Operating Temperature: -20°C to +85°C
- Size: 86.5 x 122.4 x 35.4mm
- Weight: 160g
- Ingress Protection: IP56
- Vibration Resistance: 10G at 10-2000Hz, 4 hours
- Shock Resistance: 40G at 100 bumps/6ms
- Protection: Over-temperature, over-current, short circuit
- Switching Frequency: 102kHz
- Mounting: M5 screws, torque 1.51Nm
- Certifications: RoHS, UL94V-0 materials
- Storage Temperature: -30°C to +85°C
- Operating Humidity: 20-95%
- Installation: External connection of GND, precautions for noise prevention

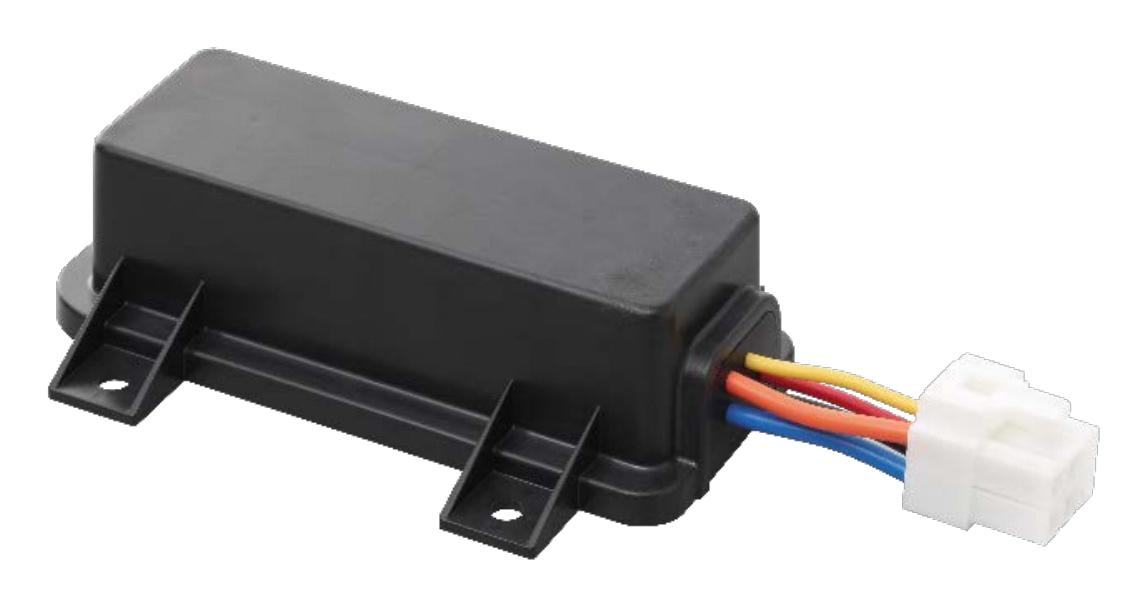

Buy the Murata Series MYPMA216W DC-DC Converter: MYPMA01218RCF-CCB
Purchase the Murata Series MYPMA01218RCF-CCB online today to secure a compact, high-efficiency 216W non-isolated DC-DC converter with IP56 rating. Featuring low ripple, surge protection, and a wide input voltage range of 36 to 75V, it is ideal for automotive, lighting, and industrial applications. Its lightweight design at only 160g, robust protection features such as over-temperature, over-current, and short circuit, along with vibration and shock resistance, guarantee reliable operation even in harsh environments. Shop now for fast delivery and hassle-free installation.
Order your Murata Series MYPMA01218RCF-CCB high-efficiency DC-DC converter today and ensure reliable power delivery for industrial and automotive projects with IP56 protection.
Frequently Asked Questions
Where can I buy MURATA POWER SOLUTIONS MYPMA01218RCFCCB?
You can click on the BUY or RFQ button to purchase MYPMA01218RCFCCB from an authorized MURATA POWER SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part MYPMA01218RCFCCB?
You can download the MYPMA01218RCFCCB datasheet or visit the MURATA POWER SOLUTIONS website for support.
Who is the manufacturer of MYPMA01218RCFCCB?
MURATA POWER SOLUTIONS
