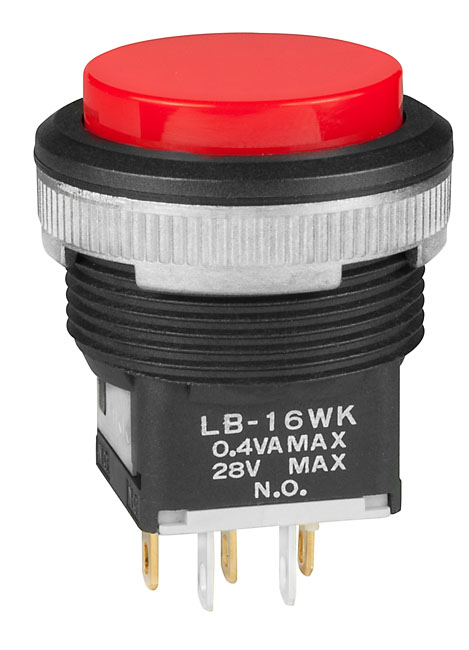

NKK Switches LB16WKG01CJ waterproof pushbutton switch
The standard size waterproof illuminated pushbutton switch from Series LB offers reliable performance in wet and harsh environments, ideal for industrial and outdoor use. Featuring a fully sealed IP65 rating, it provides bright LED illumination options in various colors for clear indication. Mountable with stainless steel clips for secure attachment to panels of different thicknesses, it incorporates snap-action contacts for long-lasting electrical life. The switch's durable polyamide housing ensures resistance to environmental stress, while the tactile and audible feedback enhances operation accuracy. Compatibility with quick connect terminals ensures easy wiring, making it suitable for demanding industrial applications requiring durability and visibility.
NKK Switches LB16WKG01CJ waterproof pushbutton switch Specifications:
- Housing Material: Glass fiber reinforced polyamide (UL94V-0)
- Contact Material: Silver alloy or copper with gold plating
- Power Rating: 3A @ 125/250V AC, 0.4VA @ 28V AC/DC
- Insulation Resistance: 200 megohms minimum @ 500V DC
- Dielectric Strength: 1000V AC (contacts & case)
- Mechanical Life: 1,000,000 operations minimum
- Electrical Life: 200,000 operations minimum
- Operating Temperature Range: -25°C to +50°C
- Sealing: IP65 according to IEC60529
- Mounting Force: 5.39N
- Mounting Torque: 1.96Nm
- Travel: Pretravel 0.059”, Overtravel 0.059”, Total Travel 0.118”
- Panel Cutout: 0.866” (22.0mm), recommended panel thickness 0.039” to 0.138”
- Terminals: Solder lug and quick connect, epoxy sealed
- Rating: 3A @ 125V/250V AC, 0.4VA @ 28V AC/DC
- Environmental Resistance: Vibration, shock, humidity tested
- Standards & Certifications: UL Recognized, CSA Certified, UL94V-0 housing
- Color Options: Red, green, blue, amber, white, with LED illumination options
- Optional accessories: Splash cover available
Buy the NKK LB16WKG01CJ – Reliable Waterproof Pushbutton for Industrial Applications
Purchase the NKK waterproof illuminated pushbutton switch LB16WKG01CJ online today to ensure your industrial or outdoor projects have reliable, IP65-rated control switches. Designed for demanding environments, this switch features bright LED indicators in multiple colors for clear status indication, a durable polyamide housing resisting environmental stress, and secure mounting options with stainless steel clips. Easy to wire with epoxy-sealed terminals, it offers long electrical and mechanical life, meeting UL and CSA standards. Enhance your control panel functionality with this high-quality, weatherproof switch, available for quick online purchase.
Buy NKK LB16WKG01CJ waterproof illuminated pushbutton now and experience unmatched durability and visibility in harsh environments.
Frequently Asked Questions
Where can I buy NKK Switches LB16WKG01CJ?
You can click on the BUY or RFQ button to purchase LB16WKG01CJ from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part LB16WKG01CJ?
You can download the LB16WKG01CJ datasheet or visit the NKK Switches website for support.
Who is the manufacturer of LB16WKG01CJ?
NKK Switches
