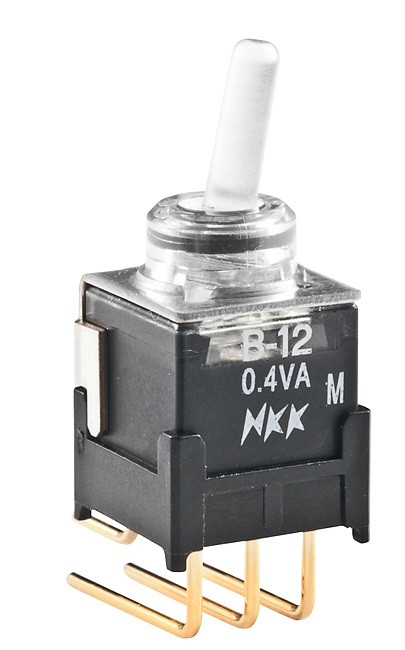

NKK Switches B12JJHF Illuminated Toggle Switch
The subminiature illuminated toggle switch is designed for PCB mounting, offering compact size and clear illumination for visible status indication. It features a sealed body construction that prevents contact contamination and allows for automated soldering and cleaning. Equipped with award-winning STC contact mechanisms for smooth, reliable operation, it comprises high-quality materials including polyamide actuators and brass or phosphor bronze contacts with gold or tin plating. Suitable for low-voltage, low-current circuits, it ensures enhanced contact stability, durability, and easy integration into various industrial and electronic applications.
NKK Switches B12JJHF Illuminated Toggle Switch Specifications:
- Electrical Capacity: 0.4VA maximum @ 28V AC/DC, Range 0.1mA ~ 0.1A
- Contact Resistance: 50 milliohms maximum
- Insulation Resistance: 500 megohms minimum @ 500V DC
- Dielectric Strength: 500V AC for 1 minute
- Mechanical Life: 100,000 operations minimum
- Electrical Life: 50,000 operations minimum
- Nominal Operating Force: 1.18N
- Contact Timing: Nonshorting (break-before-make)
- Angle of Throw: 26°
- Actuator & Bushing Material: Polyamide
- Housing Material: Polyamide and glass fiber reinforced polyamide
- Support Bracket: Brass with tin or gold plating
- Movable & Stationary Contacts: Phosphor bronze with tin or gold plating
- Terminals: Wave soldering compatible, 2.54mm spacing
- Operating Temperature Range: -25°C through +55°C
- Humidity: 90-95% for 240 hours @ 40°C
- Vibration: 10-55Hz, peak-to-peak 1.5mm
- Shock: 50G acceleration
- Soldering: Wave and manual profile A, automated cleaning recommended
- Standards & Certifications: Designed for low-voltage logic circuits; not UL or CSA certified
