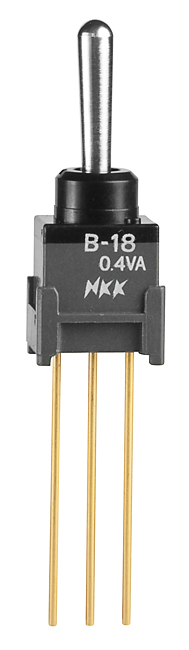

NKK Switches B18AW compact toggle switch
A compact, subminiature toggle switch designed for precise control in electronic devices, ideal for space-constrained applications. The switch features durable construction with nickel-plated brass contacts, an antistatic superstructure to prevent static discharge, and a sealed body to prevent contact contamination. Its low power capacity of 0.4 VA at 28V makes it suitable for logic-level circuits with high reliability. The toggle mechanism offers smooth actuation with increased contact stability, making it an excellent choice for low-voltage, low-current applications requiring compact size and dependable performance.
NKK Switches B18AW compact toggle switch Specifications:
- Electrical Capacity: 0.4VA maximum @ 28V AC/DC
- Contact Resistance: 50 milliohms maximum
- Insulation Resistance: 500 megohms minimum @ 500V DC
- Dielectric Strength: 500V AC minimum for 1 minute
- Mechanical Life: 100,000 operations minimum for On-None-On
- Nominal Operating Force: 1.18N for toggle J & H, 0.59N for toggle L
- Materials: Nickel plated brass, carbon blended polyamide, nitrile butadiene rubber, glass fiber reinforced polyamide
- Operating Temperature Range: -30°C to +85°C
- Humidity: 90-95% for 96 hours @ 40°C
- Vibration: 10-55Hz with peak-to-peak amplitude of 1.5mm
- Shock: 50G acceleration
- Mounting Torque: 30~.ASNm
- Soldering: Wave soldering recommended, manual soldering as per Profile A
- Cleaning: Automated cleaning as specified in supplement
- Standards & Certifications: UL9AV-0, designed for low-voltage logic applications
Buy the NKK B18AW – Reliable Toggle Switch for Industrial Applications
Order the NKK B18AW compact toggle switch online today for reliable, space-efficient control tailored for electronic and logic-level circuits. Featuring sealed construction, durable materials, and excellent contact stability, this switch ensures dependable operation even in harsh environments. Its low power capacity makes it ideal for precise control in compact devices. Enjoy quick delivery and secure purchase options, and enhance your electronics project or industrial application with this high-performance switch designed for durability, stability, and ease of installation.
Buy NKK B18AW now and experience unmatched reliability and performance in space-constrained electronic control systems.
