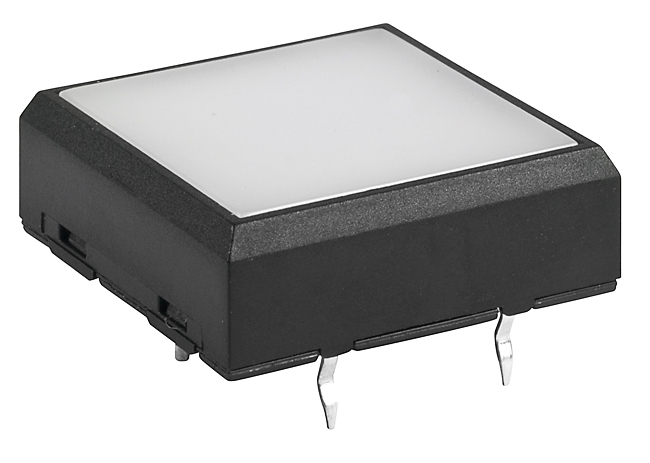

NKK Switches JL15SKSBDP2 Illuminated Tactile Switch
The illuminated ultra-thin tactile switch offers bright, full-face illumination with red, green, or amber LEDs and a compact 0.31-inch profile. It features a large 0.75-inch square actuator surface, enhanced with interior reflectors for improved brightness. Designed for printed circuit boards, it provides crisp tactile feedback with a long mechanical life of 1,000,000 operations. This switch is suitable for electronic devices needing reliable, low-profile, and illuminated tactile inputs, offering easy mounting with crimped terminals and conforming to standard PCB dimensions.
NKK Switches JL15SKSBDP2 Illuminated Tactile Switch Specifications:
- Electrical Capacity: 50mA @ 24V DC
- Contact Resistance: 50 milliohms maximum
- Insulation Resistance: 500 megohms minimum @ 250V DC
- Dielectric Strength: 250V AC minimum for 1 minute
- Mechanical Life: 1,000,000 operations minimum
- Electrical Life: 1,000,000 operations minimum
- Nominal Operating Force: 3.0N
- Total Travel: 0.030" (0.75mm)
- Actuator Material: Polycarbonate
- Case Material: Glass fiber reinforced polyamide
- Base Material: Glass fiber reinforced PBT
- Movable Contact: Stainless steel
- Stationary Contacts: Brass with silver plating
- Switch Terminals: Brass with silver plating
- Lamp Terminals: Brass with tin plating
- Operating Temperature Range: -25°C through +50°C
- Humidity Resistance: 90 ~ 95% for 240 hours @ 40°C
- Vibration: 10 ~ 55Hz with 1.5mm amplitude
- Shock Resistance: 50G acceleration
- Soldering: Wave and manual, compatible with Profile A
- Certifications: Not UL or CSA certified
- LED Colors & Forward Current: Red (75mA), Amber (100mA), Green (100mA)
- LED Forward Voltage: Red (4.0V), Amber & Green (4.2V)
- Terminal Type: Straight PC, crimped for secure mounting
- Dimensions: 0.75" x 0.75" (19mm x 19mm) actuator with 0.31" (7.85mm) profile
Buy the NKK Series JL Illuminated Ultra-Thin Tactile Switch: JL15SKSBDP2
Experience reliable and bright illumination with the NKK illuminated tactile switch. Featuring a compact 0.31-inch profile and a large 0.75-inch square actuator surface, it ensures crisp tactile feedback with a long life of one million operations. Its high-quality LED indicators provide visibility across various colors, suitable for electronic devices requiring responsive, low-profile inputs. Easy to mount with crimped terminals, this switch complies with standard PCB dimensions, making it ideal for a wide range of applications in consumer and industrial electronics.
Get NKK JL15SKSBDP2 today—designed for durable, illuminated tactile switching in compact electronic devices.
