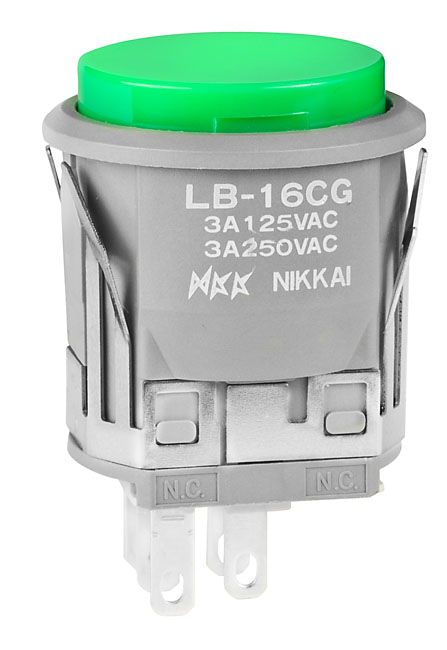

NKK Switches LB16CGW01F Illuminated Push Button
This standard size illuminated push button switch features snap-in mounting for quick installation, making it ideal for control panels and electronic devices. Equipped with bright LED illumination options, it provides clear visual indication and long electrical life. The switch housing is made from glass fiber reinforced polyamide (UL94V-0), ensuring durability, while stainless steel clips secure mounting across various panel thicknesses. Suitable for various applications requiring reliable switching, it offers excellent environmental resistance with IP65 panel sealing and operational temperature ranges from -25°C to +50°C for illuminated models. Compatible with different LED colors and lens options, it suits diverse control needs.
NKK Switches LB16CGW01F Illuminated Push Button Specifications:
- Electrical Capacity: 3A at 125/250V AC, 0.4VA max at 28V AC/DC
- Contact Resistance: 50 milliohms max for silver, 100 milliohms max for gold
- Insulation Resistance: 200 MΩ min @ 500V DC
- Dielectric Strength: 1,000V AC for 1 minute between contacts, 1,500V AC between contacts and case
- Mechanical Life: 1,000,000 operations (momentary), 200,000 (maintained)
- Nominal Operating Force: 4.0 N
- Travel: Pretravel 1.5 mm, Overtravel 1.5 mm, Total Travel 3.0 mm
- Housing Material: Glass fiber reinforced polyamide, UL94V-0
- Mounting: Snap-in clips for panels up to 4mm thick
- Environmental: Operating temperature -25°C to +50°C, humidity 95% for 96 hours
- Certifications: UL Recognized, CSA Certified, IP65 panel sealing
Buy the Buy NKK Switches LB16CGW01F Illuminated Push Button Part Number LB16CGW01F Online
Purchase the NKK Switches LB16CGW01F illuminated push button switch online today. Designed for panel control, it features snap-in mounting, bright LED light, and robust polyamide housing for durability. Ideal for electronic device controls and automation systems, the switch offers IP65 sealing and extensive temperature tolerance. With high electrical and mechanical life ratings, it ensures reliable performance in demanding environments. Efficiently compatible with various LED colors and lens options, it provides a customizable and dependable solution, supporting seamless integration into your control panel or device.
Get NKK Switches LB16CGW01F today—built for precision, bright LED illumination, and long-lasting durability in electronic control applications.
Frequently Asked Questions
Where can I buy NKK Switches LB16CGW01F?
You can click on the BUY or RFQ button to purchase LB16CGW01F from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part LB16CGW01F?
You can download the LB16CGW01F datasheet or visit the NKK Switches website for support.
Who is the manufacturer of LB16CGW01F?
NKK Switches
