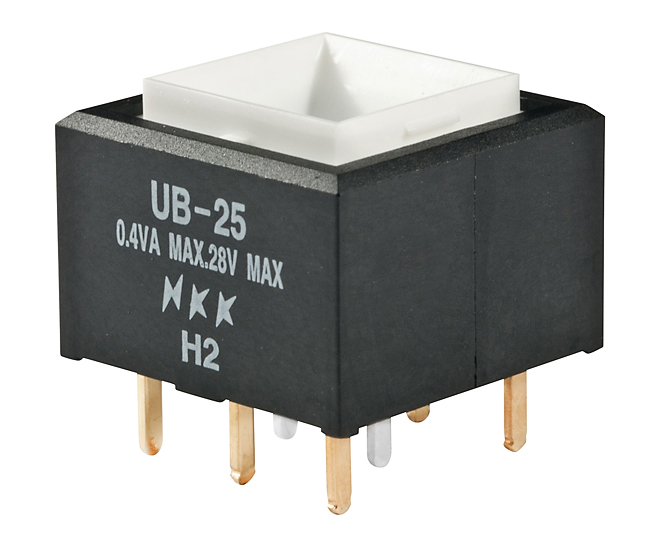

NKK Switches UB25SKG036G Illuminated Pushbutton Switch
The low-profile illuminated pushbutton switch is ideal for compact electronic applications, featuring PCB mounting and soldering options. It offers full face, spot, and rectangular illumination with bright or super bright LEDs in various colors such as red, green, white, amber, and blue. The switch supports momentary and alternate actions, with high electrical resistance and certifications for safety standards. Its durable construction includes polycarbonate and stainless steel components, designed to offer long-lasting performance in confined spaces, making it suitable for industrial, control, and automation use cases.
NKK Switches UB25SKG036G Illuminated Pushbutton Switch Specifications:
- Poles and Circuits: Single Pole SPDT, Double Pole available
- Electrical Capacity: 5A @ 125/250V AC, 0.4VA max @ 28V AC/DC
- Contact Resistance: 50 milliohms max for silver; 100 milliohms max for gold
- Insulation Resistance: 200 megaohms min @ 500V DC
- Dielectric Strength: 1000V AC contact-to-contact, 1500V AC contact-to-case for 1 min
- Mechanical Life: 1,000,000 operations minimum for momentary, 200,000 for resistive load
- Electrical Life: 100,000 operations minimum for silver contacts, 200,000 for gold
- Nominal Operating Force: 1.9N for single pole (square & rectangular), 2.55N and 3.1N for double pole
- Travel: Pretravel 0.067” (1.7mm); Overtravel 0.024” (0.6mm); Total travel 0.091” (2.3mm)
- Housing/Bezel: Glass fiber reinforced polyamide (UL94V-0)
- Materials & Finishes: Stainless steel, phosphor bronze, silver/gold plating
- Operating Temperature Range: -20°C to +70°C, humidity 90-95% for 96 hours at 40°C
- Certifications: UL Recognized, CSA Certified, with specific models rated at 5A @ 125/250V AC
- Mounting: PCB, snap-in, with panel thickness from 0.039” to 0.126” (1.0mm to 3.2mm)
Buy the NKK Series UB Pushbutton Switch: UB25SKG036G
Order the NKK Series UB25SKG036G illuminated pushbutton switch online today to enjoy quick delivery and build reliable, space-saving electronic controls. Featuring bright LED illumination in multiple colors, robust construction, and a compact PCB mount design, this switch is perfect for industrial automation, control panels, and other electronic applications. Its high electrical and mechanical lifecycle ensures long-lasting performance, making it an essential component for your next project. Enhance your control interface with this durable, easy-to-install pushbutton switch available now online.
Buy NKK UB25SKG036G low-profile illuminated pushbutton switch now and experience unmatched reliability and performance in compact control applications.
Frequently Asked Questions
Where can I buy NKK Switches UB25SKG036G?
You can click on the BUY or RFQ button to purchase UB25SKG036G from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part UB25SKG036G?
You can download the UB25SKG036G datasheet or visit the NKK Switches website for support.
Who is the manufacturer of UB25SKG036G?
NKK Switches
