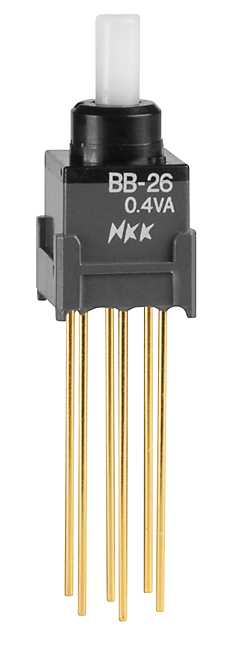

NKK Switches BB26AW Subminiature Pushbutton Switch
A subminiature pushbutton switch designed for compact electronic applications. Suitable for panel mounting and low-profile operation, providing reliable actuation in limited space environments.
NKK Switches BB26AW Subminiature Pushbutton Switch Specifications:
- Size: 6mm diameter bushing
- Actuation Force: 2.55N (momentary); 2.94N (alternate action)
- Contact Resistance: 50 milliohms maximum
- Insulation Resistance: 500 megaohms minimum at 500V DC
- Dielectric Strength: 500V AC for 1 minute minimum
- Travel: Pretravel .028” (0.7mm) for momentary, .039” (1.0mm) for alternate
- Material: Polyacetal plunger, carbon blended polyamide bushing
- Operating Temp: -30°C to +85°C
- Vibration Resistance: 10 ~ 55Hz with 1.5mm amplitude
- Shock Resistance: 50G acceleration
- Soldering: Wave soldering recommended
- Certifications: UL9AV-0 available
Buy the Buy NKK Subminiature Pushbutton Part Number BB26AW Online
Purchase the NKK Series BB26AW subminiature pushbutton switch online to enhance your electronic designs with reliable, space-saving actuation. Its low-profile, panel-mount design makes it ideal for compact devices requiring dependable switch performance. This switch offers excellent electrical and environmental robustness, including high insulation resistance, dielectric strength, and shock resistance. Featuring wave soldering compatibility and UL certification options, it ensures a professional quality fit for low-voltage, low-current applications across various electronic projects and manufacturing demands.
Order your NKK Series BB26AW compact low-profile switch today and ensure reliable actuation in your space-limited projects with quality you can trust.
Frequently Asked Questions
Where can I buy NKK Switches BB26AW?
You can click on the BUY or RFQ button to purchase BB26AW from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part BB26AW?
You can download the BB26AW datasheet or visit the NKK Switches website for support.
Who is the manufacturer of BB26AW?
NKK Switches
