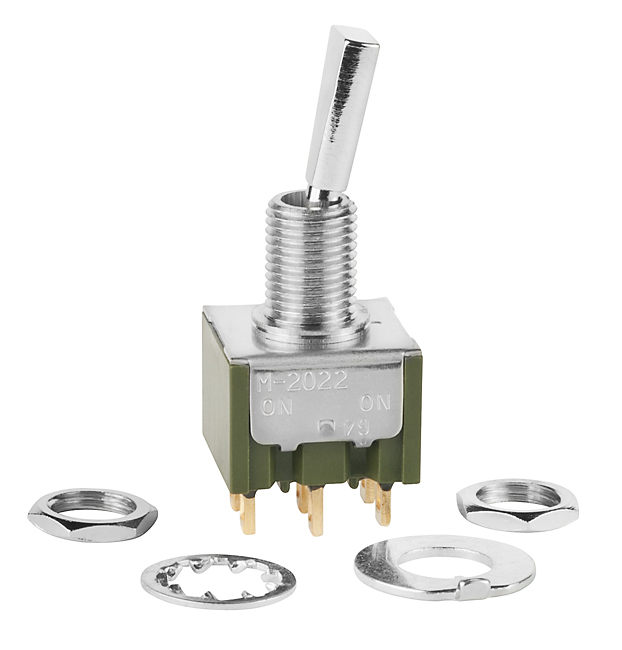

NKK Switches M2022ES1G01 Miniature Toggle Switch
This is a miniature toggle switch with multi-function capabilities. Suitable for small electronic devices where compact size and versatile operation are required. It features silver or gold contact ratings, with dual ratings for power and logic levels. The switch offers a reflective chrome finish, with epoxy sealed terminals for contamination protection. It supports multiple poles and circuits, including single, double, and triple configurations. Designed with high insulation barriers, it ensures reliable circuit separation and long mechanical and electrical life. Operating temperatures range from -30°C to +85°C, with vibration and shock resistance meeting industrial standards, making it ideal for compact electronic and industrial controls.
NKK Switches M2022ES1G01 Miniature Toggle Switch Specifications:
- Contact Materials & Ratings: Silver over Silver Power Level 6A @ 125V AC & 3A @ 250V AC, Gold over Brass or Copper Logic Level 6A @ 125V AC & 3A @ 250V AC, dual rated for power and logic circuits
- Terminal Types: Epoxy sealed terminals, Solder Lug, Quick Connect, Extended PC terminals
- Switch Poles & Circuits: Single, Double, Triple, Four Pole configurations with various terminal arrangements
- Operating Temp Range: -30°C to +85°C
- Vibration Resistance: 10-55Hz, peak-to-peak amplitude 1.5mm for 2 hours
- Shock Resistance: 50G acceleration, tested in multiple directions
- Insulation Resistance: Minimum 1,000 Megohms @ 500V DC
- Dielectric Strength: 1,000V AC contact-to-contact, 1,500V AC contact-to-case
- Mechanical Life: Minimum 100,000 operations for standard models, 50,000 for splashproof versions
- Environmental: Humidity resistance 90-95% for 96 hours at 40°C, splashproof options meet IP67
- Physical Dimensions: Bushing diameters 5.08mm to 21.3mm, toggle lengths vary with bushing selection
- Materials & Finishes: Brass with chrome, nickel, or satin chrome finishes; polycarbonate or polyethylene caps
- Standards & Certifications: UL Recognized, CSA Certified, compliant with flammability and dielectric standards
