NKK Switches FR01FC10HS Rotary switch
The DIP switch series FRO1 offers compact 10mm rotary switches designed for electronic circuit configurations requiring multiple positions. Featuring a low profile, high-density mounting capability, and reliable contact mechanisms, these switches accommodate resistive loads up to 100mA at 5V or 50V DC, with durable gold-plated contacts and a detent mechanism for crisp, positive action. Variants include screwdriver and plastic shafts, with choices of straight or right-angle PC mounting options. Suitable for low-voltage, low-current applications, they meet UL94V-0 flammability standards and can withstand environmental stresses such as humidity, vibration, and mechanical shocks.
NKK Switches FR01FC10HS Rotary switch Specifications:
- Electrical Capacity (Resistive Load): 100mA @ 5V DC, 100mA @ 50V DC
- Contact Resistance: 30 milliohms maximum for contact point
- Insulation Resistance: 1,000 megohms minimum @ 250V DC
- Dielectric Strength: 250V AC minimum for 1 minute
- Mechanical Life: 10,000 detent operations minimum
- Operating Temperature Range: -13°F to +185°F (-25°C to +85°C)
- Vibration Resistance: 10-55Hz, peak-to-peak 1.5mm amplitude for 2 hours
- Shock Resistance: 50G acceleration in six directions
- Material: Glass fiber reinforced polyamide, brass with nickel plating, copper alloy with gold plating
- Soldering: Wave and manual soldering compatible, process sealed options available
- Certifications: UL94V-0 rated actuator, housing, and base; designed for low-voltage, low-current circuits
- Housing & Base: UL94V-0 rated materials, compact dimensions
- Environmental: -25°C to +85°C, humidity up to 95% for 240 hours

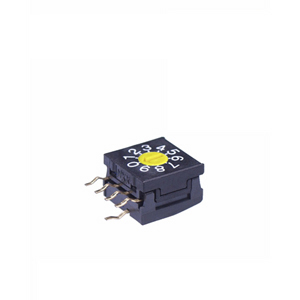

Buy the Buy NKK FRO1 Series FRO1FC10HS Part Number FRO1FC10HS Online
Purchase the NKK rotary switch Series FRO1FC10HS online today and ensure your electronic projects benefit from durable, high-quality switching components. These low-profile, 10mm DIP rotary switches feature high contact reliability with gold-plated contacts and a detent mechanism for accurate position setting. Designed for low-voltage, low-current applications, they support various actuator options including screwdriver and plastic shafts, straight or right-angle mounting, and are compliant with UL94V-0 standards. Secure your inventory now and enjoy quick delivery for your circuit assembly needs.
Order your NKK Series FRO1FC10HS rotary switch today and enhance your circuit designs with reliable, compact, and high-density switching solutions.
Frequently Asked Questions
Where can I buy NKK Switches FR01FC10HS?
You can click on the BUY or RFQ button to purchase FR01FC10HS from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part FR01FC10HS?
You can download the FR01FC10HS datasheet or visit the NKK Switches website for support.
Who is the manufacturer of FR01FC10HS?
NKK Switches
