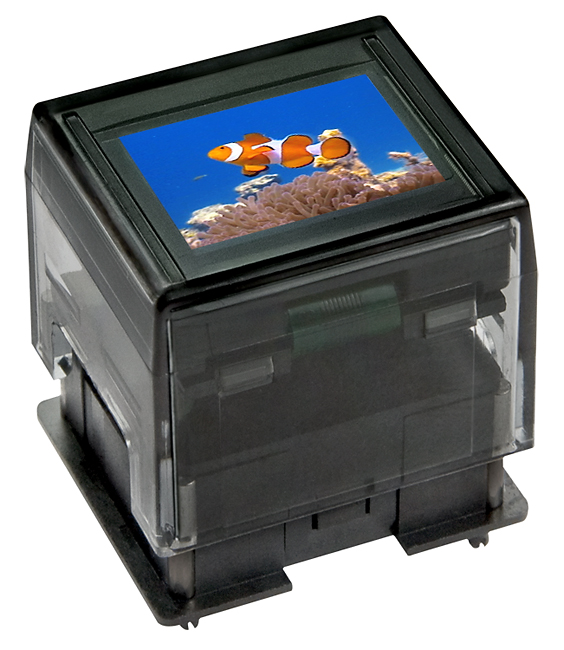

NKK Switches ISC15ANP4 Color OLED Display
A color OLED display module with a resolution of 64x48 pixels, suitable for various display applications. Features include 65,536 colors in 16-bit mode, 256 colors in 8-bit mode, and a high contrast ratio of 100:1. Operates within -20°C to +70°C and has a lifespan of 30,000 hours. The module uses a passive matrix display mode, serial SPI communication, and includes epoxy-sealed straight PC terminals for durability. Its compact size (15.5mm x 11.6mm viewing area) ensures easy integration into diverse electronic projects with long-life reliability for continuous operation and high-quality visuals.
NKK Switches ISC15ANP4 Color OLED Display Specifications:
- Display Device: Color OLED display module
- Display Mode: Passive matrix
- Viewing Area: 15.5mm x 11.6mm (horizontal x vertical)
- Pixel Format: 64RGB x 48 pixels
- Pixel Size: 0.21mm x 0.20mm (horizontal x vertical)
- Number of Colors: 65,536 in 16-bit mode, 256 in 8-bit mode
- Interface: Serial (SPI)
- Operating Temperature: -20°C to +70°C
- Storage Temperature: -40°C to +80°C
- Display Lifespan: 30,000 hours at 40% pixels ON
- Contrast Ratio: 100:1
- Material: Epoxy sealed terminals
- Power Supply: Vcc 2.4V to 3.5V, Vee 0V to 19V
- Mechanical Durability: 3,000,000 operations minimum
Buy the Buy NKK Switches OLED Display Part Number ISC15ANP4 Online
Purchase the NKK Switches color OLED display module online today. With a resolution of 64x48 pixels, 65,536 colors, and a lifespan of 30,000 hours, this compact display ensures vibrant visuals and high reliability. Ideal for embedded systems, wearable devices, and instrumentation, it features a passive matrix mode with serial SPI interface for easy integration. Its epoxy-sealed terminals enhance durability. Get this high-performance display module now to elevate your electronic design with sharp images and long-lasting operation.
Buy NKK Switches ISC15ANP4 now and experience unmatched reliability and superior display quality in your electronic projects.
Frequently Asked Questions
Where can I buy NKK Switches ISC15ANP4?
You can click on the BUY or RFQ button to purchase ISC15ANP4 from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part ISC15ANP4?
You can download the ISC15ANP4 datasheet or visit the NKK Switches website for support.
Who is the manufacturer of ISC15ANP4?
NKK Switches
