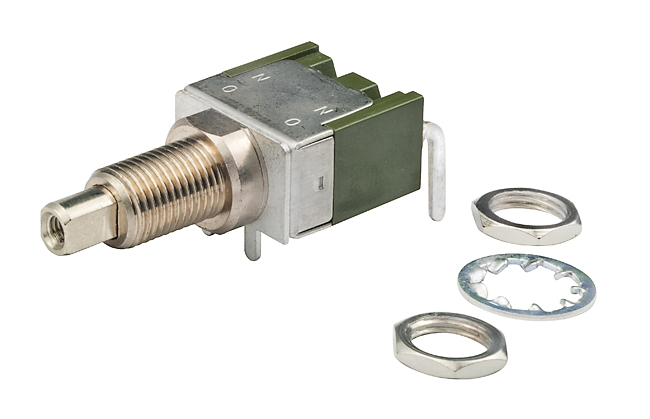

NKK Switches MB2065SS1W30 Miniature Pushbutton Switch
This miniature pushbutton switch features a compact design with high durability, suitable for various electronic control applications. It employs an over-center actuator mechanism that reduces sparking and enhances life expectancy in AC circuits. The switch includes splashproof options with o-rings to protect against liquids and high insulating barriers for circuit isolation. It offers various contact materials such as silver and gold, and is rated up to 6A at 125V AC or 3A at 250V AC. The switch is suitable for panel mounting, with robust terminal and bushing constructions ensuring reliable operation in industrial environments. Certifications include UL and CSA recognition, conforming to safety standards, with environmental tolerance from -30°C to +85°C and high mechanical and electrical life cycle performance.
NKK Switches MB2065SS1W30 Miniature Pushbutton Switch Specifications:
- Rated 6A @ 125V AC & 3A @ 250V AC
- 0.4VA max @ 28V DC
- Insulation Resistance: 1,000 megohms min at 500V DC
- Dielectric Strength: 1,000V AC for 1 minute between contacts, 1,500V AC between contacts and case
- Operating Temperature Range: -30°C to +85°C
- Vibration Resistance: 10-55Hz, 1.5mm amplitude
- Shock Resistance: 50G in 6 directions
- Mechanical Life: 50,000 to 100,000 operations depending on model
- Panel Thickness: Max 0.154 inches (3.9mm)
- Terminals: Soldering, straight PC, or right-angle PC with or without support
- Bushing Materials: Brass with nickel plating or stainless steel
- Sealing: D3 and B3 bushings with IP67 equivalent options
- Certifications: UL Recognized, CSA Certified
- Plunger Material: Brass with nickel or gold plating
- Mounting Torque: 1.5Nm (13.0 Ibs-in) for double nut, 0.7Nm (6.0 Ibs-in) for single nut
Buy the NKK Series MB2065 Miniature Pushbutton Switch Reliable Control Panel Component
Order the NKK MB2065 miniature pushbutton switch online today to enhance your control systems with a reliable, high-quality component. Designed for demanding industrial environments, it offers superior durability, splashproof features, and certified safety standards. Whether for automation, machinery, or panel control, this switch ensures consistent operation with a high electrical capacity and long mechanical life. Don't miss the opportunity to upgrade your equipment with this robust switch—buy now for fast delivery and excellent performance.
Buy NKK MB2065 now and experience unmatched reliability and performance in control circuit switches.
Frequently Asked Questions
Where can I buy NKK Switches MB2065SS1W30?
You can click on the BUY or RFQ button to purchase MB2065SS1W30 from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part MB2065SS1W30?
You can download the MB2065SS1W30 datasheet or visit the NKK Switches website for support.
Who is the manufacturer of MB2065SS1W30?
NKK Switches
