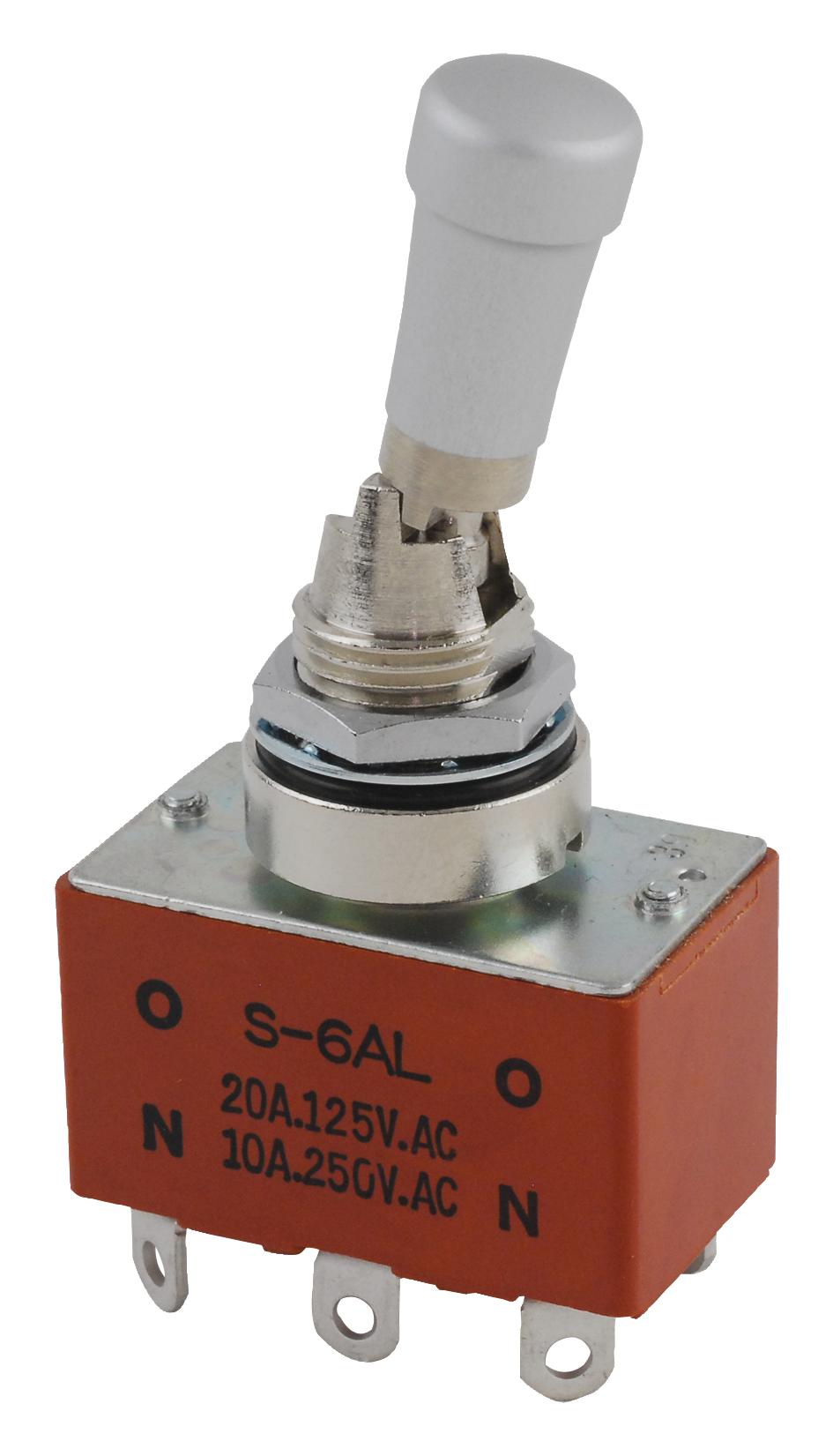

NKK Switches S6AL Toggle Switch
Series S medium capacity standard size toggles are reliable switch components designed for a wide range of electrical applications. Available in various configurations such as single pole, double pole, and with quick connect or solder lug terminals, these toggles feature resistive and inductive load ratings up to 20A and 250V. They are constructed with durable materials including brass, phenolic resin, and zinc-plated steel, making them suitable for industrial environments with temperature ranges from -10°C to +70°C. Certified for UL and CSA standards, they ensure safety and performance in demanding settings.
NKK Switches S6AL Toggle Switch Specifications:
- Electrical Capacity: up to 20A at 250V AC, 8A at 30V DC
- Materials: Brass with chrome plating, phenolic resin, zinc-plated steel
- Temperature Range: -10°C to +70°C (14°F to 158°F)
- Maximum Panel Thickness: 0.158 inch (4.0 mm)
- Sealing: Meets IP67 standard for splashproof & lever lock panel seal models
- Mechanical Life: minimum 30,000 operations
- Electrical Life: minimum 50,000 operations
- Terminal Types: Solder lug, quick connect, with panel seal or lock lever options
- Certifications: UL Recognized, CSA Certified
- Operating Angle of Throw: 21° to 28° depending on model
- Mounting Torque: 1.47 Nm (13 lb-in) or 2.94 Nm (26 lb-in) depending on nut type
Buy the NKK Series S Toggle Switch: S6AL
Enhance your control panel with the durable NKK toggle switch series S6AL. Designed for high performance and certified safety, these switches withstand harsh environments with a robust construction of brass, phenolic resin, and zinc plated steel. Rated up to 20A and 250V AC, they offer reliable operation with an operating angle of 21° to 28°. Ideal for industrial, automation, and control systems, their IP67 sealing ensures waterproof protection. Purchase online today for fast delivery and premium quality switching solutions.
Buy NKK Series S toggle switch S6AL now and experience unmatched reliability and performance in industrial switching applications.
Frequently Asked Questions
Where can I buy NKK Switches S6AL?
You can click on the BUY or RFQ button to purchase S6AL from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part S6AL?
You can download the S6AL datasheet or visit the NKK Switches website for support.
Who is the manufacturer of S6AL?
NKK Switches
