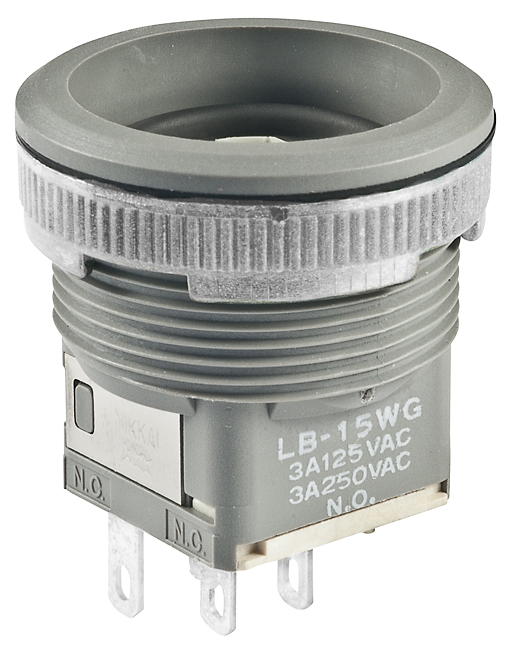

NKK Switches LB15WGW01 Waterproof Pushbutton Switch
The standard size illuminated waterproof pushbutton switch series LB is designed for demanding industrial applications, offering bright surface illumination with front panel relamping, optional bi-color LEDs, and a secure mount with stainless steel clips. It features snap-action contacts with high electrical life, a sealed IP65 rating for protection against dust and water, and compatibility with various LED colors and lamp types. The switch’s compact design, latchdown indicator, and tactile feedback ensure reliable operation in harsh environments, making it ideal for automation, control panels, and industrial machinery.
NKK Switches LB15WGW01 Waterproof Pushbutton Switch Specifications:
- Electrical Capacity: 3A @ 125V AC or 3A @ 250V AC, 0.4VA max @ 28V AC/DC
- Housing Material: Glass fiber reinforced polyamide (UL94V-0)
- Operating Temperature Range: -25°C to +50°C for illuminated models, -25°C to +70°C for non-illuminated
- Sealing: IP65 according to IEC60529, NEMA 4 & 13 compatible
- Contact Resistance: Max 50 milliohms for silver, 100 milliohms for gold
- Mechanical Life: 1,000,000 operations min
- Electrical Life: 200,000 operations min
- Travel: Pretravel 0.059” (1.5mm), overtravel 0.059” (1.5mm), total travel 0.118” (3.0mm)
- Mounting: Stainless steel clips for panel thicknesses 1.0mm to 4.0mm
- Terminals: Combination solder lug and .110” quick connect, epoxy sealed
- Vibration & Shock: Vibration 10-55Hz, Shock 50G
- Standards & Certifications: UL Recognized, CSA Certified (when ordered with markings), UL94V-0 housing
Buy the Buy NKK Switches Standard Size Pushbutton Part Number LB15WGW01 Online
Enhance your industrial control systems with the NKK Waterproof Pushbutton Switch. Featuring durable IP65 sealing, bright LED illumination, snap-action contacts, and secure stainless steel mounting clips, this switch ensures reliable operation in harsh environments. Its compact design and various LED options make it versatile for automation and machinery. Order online today to benefit from quick delivery, trusted quality, and real-time support, optimizing operational performance for demanding manufacturing and control applications.
Buy NKK Switches LB15WGW01 waterproof illuminated pushbutton now and experience unmatched reliability in demanding industrial environments.
Frequently Asked Questions
Where can I buy NKK Switches LB15WGW01?
You can click on the BUY or RFQ button to purchase LB15WGW01 from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part LB15WGW01?
You can download the LB15WGW01 datasheet or visit the NKK Switches website for support.
Who is the manufacturer of LB15WGW01?
NKK Switches
