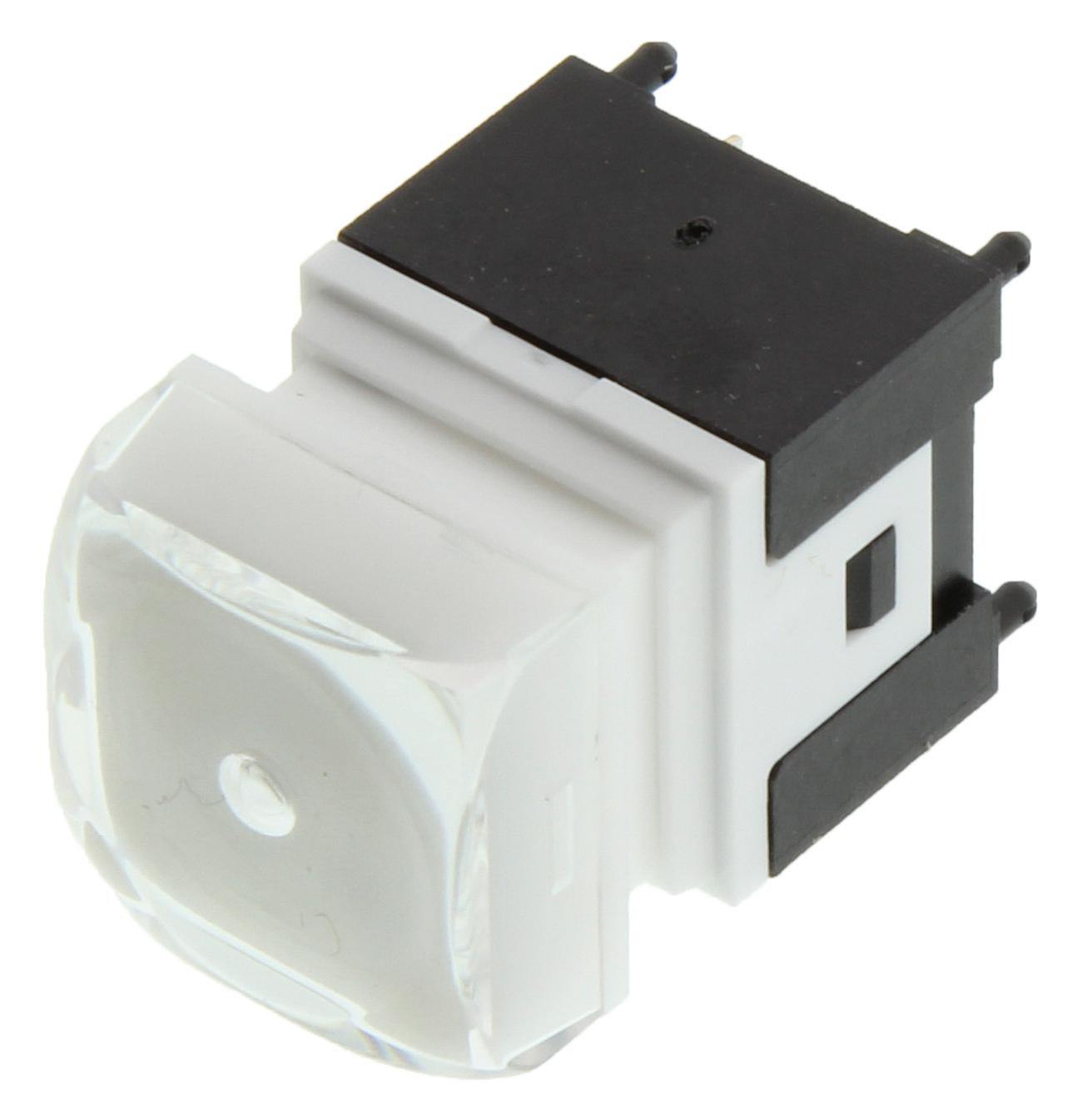

NKK Switches KP0215ANBKG036E2TJB Illuminated Pushbutton
The KP Series single color illuminated pushbutton offers a reliable, compact control solution with super bright LEDs in white, yellow, or blue. Designed for low-voltage, low-current circuits, it features a flat or sculptured cap, easy installation, and a long life of 5 million operations. Suitable for control panels, its manufacturing materials include UL94V-0 rated polybutylene terephthalate housing, gold-plated contacts, and polycarbonate lenses. The switch supports resistive loads, with a 3.5mm stroke, 1.6N actuation force, and high durability for industrial automation and control applications.
NKK Switches KP0215ANBKG036E2TJB Illuminated Pushbutton Specifications:
- Electrical Capacity: 100mA max at 12V DC
- Contact Resistance: max 200 milliohms
- Insulation Resistance: minimum 100 megohms at 250V DC
- Dielectric Strength: 1,000V AC between contacts, 1,500V AC between contacts & case
- Mechanical Life: minimum 5,000,000 operations
- Electrical Life: minimum 5,000,000 operations
- Operating Temperature Range: -25°C to +50°C
- Humidity: 90-95% at 40°C for 240 hours
- Vibration: 10-55Hz, peak-to-peak amplitude 1.5mm, 1 minute
- Shock: 51G acceleration, tested in six directions
- Actuation Force: 1.6N
- Travel: Pretravel 0.091 inch (2.3mm), Overtravel 0.047 inch (1.2mm), Total Travel 0.138 inch (3.5mm)
- Plunger: 11.6mm, with optional caps of sizes 15.0mm square or 17.4mm square
- Housing Material: Glass fiber reinforced PBT UL94V-0
- Contacts & Terminals: Gold-plated copper alloy for high reliability
- LED Features: Bright white, yellow, or blue LEDs with maximum forward current 30mA, forward voltage 3.2V, ambient temperature -25°C to +50°C
- Soldering: Wave and manual soldering compatible, preheat 110°C for 40 sec, peak 270°C for 6 sec
- Standards: Flammability UL 94V-0
Buy the NKK Switches KP0215ANBKG036E3 – Reliable Illuminated Pushbutton for Industrial Applications
Order the NKK Switches KP0215ANBKG036E3 illuminated pushbutton online today and experience a high-reliability component ideal for industrial and automation control panels. With super bright LEDs in white, yellow, or blue, it offers a compact, durable design supporting 5 million operations. Easy to install, with scalable legends and various cap options, this switch ensures precise, silent actuation in low-voltage applications. Perfect for manufacturing, automation, control systems, and panel customization for reliable, long-term operation.
Get NKK Switches KP0215ANBKG036E3 today—built for precision, long-lasting durability, and seamless control panel integration.
Frequently Asked Questions
Where can I buy NKK Switches KP0215ANBKG036E2TJB?
You can click on the BUY or RFQ button to purchase KP0215ANBKG036E2TJB from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part KP0215ANBKG036E2TJB?
You can download the KP0215ANBKG036E2TJB datasheet or visit the NKK Switches website for support.
Who is the manufacturer of KP0215ANBKG036E2TJB?
NKK Switches
