NKK Switches GW12LJPC Miniature Illuminated Paddle Switch
The ultra-miniature illuminated paddle switch is designed for printed circuit board mounting, providing a compact, reliable, and highly visible control interface. Suitable for electronic applications that require a small, illuminated toggle, it features LED indicators in red, green, or amber, and bicolor options. Its patent-pending switch mechanism offers crisp actuation feedback, ensuring positive circuit transfer indication. The switch withstands harsh environments with high insulation resistance and robust construction, making it ideal for low-voltage, low-current logic-level circuits. Easy to install, it combines space-saving design with durable performance, suited for precision electronic devices and automation systems.
NKK Switches GW12LJPC Miniature Illuminated Paddle Switch Specifications:
- Electrical Capacity: 0.4VA max @ 28V AC/DC
- Contact Resistance: 80 milliohms max
- Insulation Resistance: 500 megohms min @ 500V DC
- Dielectric Strength: 500V AC for 1 minute
- Mechanical Life: 50,000 operations
- Operating Temperature Range: -25°C to +55°C
- Humidity: 90~95% for 240 hours @ 40°C
- Shock Resistance: 50G in 3 directions
- Vibration Resistance: 10~55Hz, peak-to-peak 1.5mm
- Terminal Spacing: 0.100 inches (2.54mm)
- Material: Polycarbonate case, glass fiber reinforced polyamide, nitrile rubber
- LED Options: Red, Green, Amber, and Bicolor (Red/Green)
- LED Forward Voltage: 2.0V to 2.1V
- LED Forward Current: 20mA
- Certification: UL94V-0 flammability rated
- Switch Size: Ultra-thin, miniature
- Mounting: PCB through-hole
- Operation Force: 1.0N
- Ambient Temperature Range: -25°C to 45°C

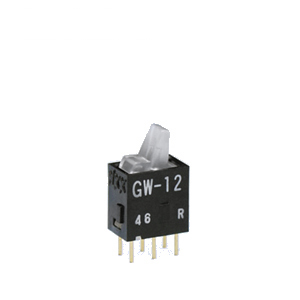

Buy the Buy NKK Switches Series GW Part Number GW12LJPC Online
