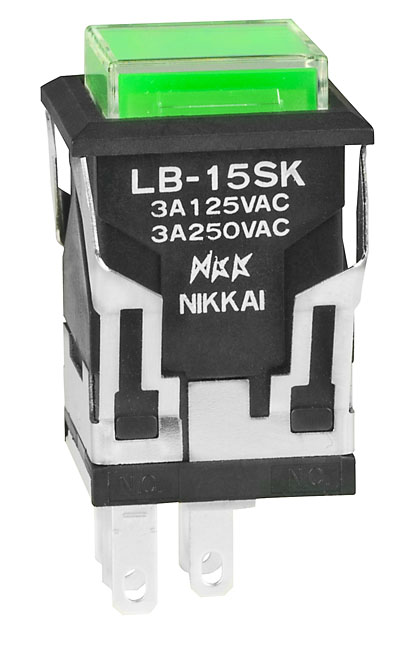

NKK Switches LB15SKW01JF Standard Size Illuminated Pushbutton
The standard size illuminated pushbutton switch with snap-in mounting features bright surface illumination, front panel relamping, and a variety of LED colors including red, green, blue, amber, and white. It offers options for incandescent and neon lamps, and polarized LEDs for clear indication status. The switch is ergonomically designed for smooth actuation with tactile feedback, making it suitable for industrial control panels. Its durable polyamide housing is panel sealed to meet IP65 standards, and it features secure mounting with stainless steel clips, ensuring long-lasting performance in demanding environments.
NKK Switches LB15SKW01JF Standard Size Illuminated Pushbutton Specifications:
- Housing: Polyamide UL94V-0, panel seal IP65
- Switch Type: Snap-in, momentary or maintained contact
- Electrical Ratings: 3A @ 125/250V AC, 0.4VA @ 28V AC/DC
- LED Colors: Red, Green, Blue, Amber, White, with options for bright or super bright LEDs
- Lamp Power: Incandescent 5V or 12V, Neon 110V, with external resistor options
- Travel: Pretravel 1.5mm (0.059”), Total Travel 3.0mm (0.118”)
- Materials: Stainless steel clips, polycarbonate lens, epoxy sealed terminals
- Operating Temp: -25°C to +50°C for illuminated, -25°C to +70°C for non-illuminated
- Panel Cutout: 16.2mm x 16.2mm for square models, 15.8mm x 22.0mm for rectangular
- Durability: 1,000,000 operations minimum for momentary circuits
- Certifications: UL, cULus & CSA recognized when ordered with marking
Buy the NKK Series LB Illuminated Pushbutton: LB15SKW01JF
Purchase the NKK Series LB illuminated pushbutton today for durable, bright, and reliable panel control. Featuring panel sealing, multiple LED options, and long electrical life, this switch ensures operational excellence in industrial environments. Its quick snap-in mounting simplifies installation, and the wide choice of lens and LED colors allows for clear status indication. Ideal for control panels requiring robust and long-lasting components, this switch enhances operator interface with tactile feedback and conspicuous illumination, making it a smart upgrade for any automation project.
Order your NKK Series LB illuminated pushbutton today and give your panels reliable and bright control solutions.
