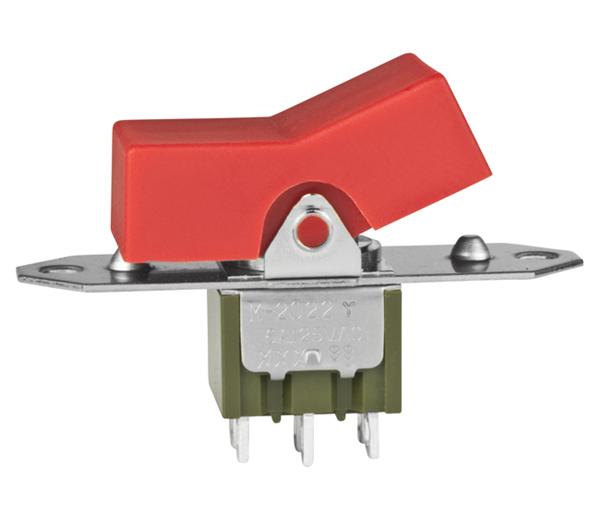

NKK Switches M2022TYW01JC Miniature Rocker Switch
This miniature rocker switch features multiple poles and circuits, including SPDT, DPDT, 3PDT, and 4PDT configurations, with ratings up to 6A at 125V AC and 3A at 250V AC. Its durable polyamide case with UL 94V-0 flammability rating, epoxy sealed terminals, and high insulation barriers ensure reliable performance. Designed for panel mounting with optional hardware, it offers excellent dielectric strength, resistance to humidity, vibration, and shock, and supports various soldering methods. Ideal for control panels, automation, and electronic device applications with a 50,000 mechanical life and 25,000 electrical operations minimum.
NKK Switches M2022TYW01JC Miniature Rocker Switch Specifications:
- Poles & Circuits: SPDT, DPDT, 3PDT, 4PDT configurations
- Electrical Ratings: 6A at 125V AC, 3A at 250V AC, 0.4VA max at 28V DC
- Contact Resistance: Silver - 10 milliohms max; Gold - 20 milliohms max
- Insulation Resistance: 1,000 Megohms minimum at 500V DC
- Dielectric Strength: 1,000V AC contact-to-contact, 1,500V AC contact-to-case for 1 min
- Mechanical Life: 50,000 operations minimum
- Electrical Life: 25,000 operations for silver, 50,000 for gold
- Operating Temperature: -30°C to +85°C
- Vibration: 10-55Hz, peak-to-peak amplitude 1.5mm
- Shock: 50G acceleration
- Body Material: Polyamide with UL 94V-0 rating
- Actuator Material: Polyamide
- Mounting Options: Flat frame, snap-in, PCB, face panel, subpanel
- Soldering: Wave or manual, with soldering in OFF position
- Certifications: UL, CSA recognized (order with marking), UL 94V-0 flammability
Buy the Buy NKK Switches Miniature Rocker Part Number M2022TYW01JC Online
Purchase your NKK Series M Miniature Rocker Switch M2022TYW01JC online today to ensure your projects benefit from high-quality, dependable switching solutions. With multiple poles and circuits, rated up to 6A at 125V AC, and feature-rich design including epoxy sealed terminals and UL rated case, this switch offers excellent durability and performance. Ideal for automation, control panels, and electronic devices, it supports various mounting options and withstands vibration, shock, and humidity for long-lasting operation. Get it today for your control needs!
Order your NKK Series M Miniature Rocker Switch M2022TYW01JC today and enhance your control applications with reliable, durable switching performance.
