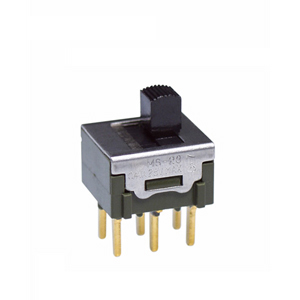

NKK Switches MS23ANG03 Miniature Slide Switch
This miniature slide switch offers reliable toggle action in a compact design, suitable for PCB mounting and soldering. It features high durability with a minimum of 100,000 operations, providing excellent performance for electronic devices. The switch supports resistive loads up to 6A at 125V AC and 3A at 250V AC, with a maximum of 0.4VA at 28V AC/DC. Constructed with UL94V-0 rated materials, it ensures safety and insulation. Options include single or double pole configurations, various terminal types, and long mechanical and electrical life for demanding applications.
NKK Switches MS23ANG03 Miniature Slide Switch Specifications:
- Electrical Capacity: 6A @ 125V AC, 3A @ 250V AC
- Resistive Load: 0.4VA max @ 28V AC/DC
- Mechanical Life: 100,000 operations minimum
- Contact Resistance: 10 milliohms max for silver; 20 milliohms max for gold
- Insulation Resistance: 1,000 megohms min @ 500V DC
- Dielectric Strength: 1,000V AC contact-to-contact, 1,500V AC contact-to-case (1 min)
- Operating Temp Range: -30°C to +85°C
- Vibration: 10-55Hz, amplitude 1.5mm, 2 hours per direction
- Shock: 50G acceleration in 6 directions
- Material: UL94V-0 rated PBT resin, phosphor bronze contacts, stainless steel terminals
- Mounting Options: Solder Lug, Straight PC, Bracket PC, Vertical PC, and Wire Harness
- Soldering: Wave soldering, manual soldering profiles available
- Certifications: UL, CSA recognized (order marked on switch), UL/CSA rated for specific configurations
Buy the NKK Series MS Miniature Slide Switch: MS23ANG03
Purchase your NKK Series MS23ANG03 miniature slide switch online now to upgrade your electronic assemblies. Designed for PCB mounting with durable materials, this switch provides reliable toggle action and high current capacity. Ideal for compact electronic devices, it supports resistive loads up to 6A at 125V AC and 3A at 250V AC, with a mechanical life of over 100,000 operations. Certified under UL and CSA, it ensures safety, performance, and long-term reliability for your critical applications.
Order your NKK Series MS23ANG03 miniature slide switch today and enhance your electronic projects with dependable, long-lasting performance.
Frequently Asked Questions
Where can I buy NKK Switches MS23ANG03?
You can click on the BUY or RFQ button to purchase MS23ANG03 from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part MS23ANG03?
You can download the MS23ANG03 datasheet or visit the NKK Switches website for support.
Who is the manufacturer of MS23ANG03?
NKK Switches
