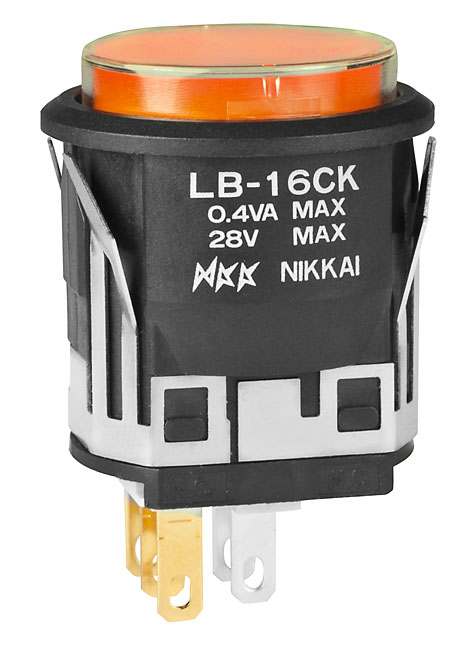

NKK Switches LB16CKG015D12JD Illuminated Pushbutton
This standard size illuminated pushbutton switch features snap-in mounting, suited for control panels and electronic devices. It offers bright illumination, reliable operation, and is available with various LED colors. The switch has durable materials ensuring long life, with options for panel sealing for environmental protection. Its design includes easy lamp replacement and compatibility with different voltage configurations, making it ideal for industrial control systems, automation, and electronic projects where visibility and dependable switching are required.
NKK Switches LB16CKG015D12JD Illuminated Pushbutton Specifications:
- Housing Material: Polycarbonate
- Panel Seal: IP65 compliance
- Mounting Method: Snap-in
- Illumination: Bright LED with various color options
- Voltage Rating: 3A @ 125/250V AC, 0.4VA @ 28V AC/DC
- Contact Resistance: 50 milliohms max for silver contacts
- Insulation Resistance: 200 Megohms minimum at 500V DC
- Dielectric Strength: 1,000V AC contact to case; 1 minute duration
- Mechanical Life: 1,000,000 operations minimum
- Electrical Life: 200,000 operations minimum
- Operating Temperature: -25°C to +50°C for illuminated models, -25°C to +70°C for non-illuminated
- Travel: Pretravel 0.059” (1.5mm), Overtravel 0.059” (1.5mm), Total Travel 0.118” (3.0mm)
- Material: Glass fiber reinforced polyamide, stainless steel, silver alloy or gold-plated contacts
- Environmental: Humidity up to 95% for 96 hours, shock resistance 50G
Buy the NKK LB16CKG015D12JD – Reliable Illuminated Pushbutton for Industrial Applications
Enhance your control systems with the NKK LB16CKG015D12JD illuminated pushbutton. Featuring snap-in mounting, bright LED indicators in multiple colors, and IP65 panel sealing, this switch offers reliable, long-lasting performance. It is suitable for industrial, automation, and electronic applications where clear visibility and responsive operation are essential. Easy lamp replacement, robust materials, and high electrical and mechanical endurance make it an ideal choice for demanding environments. Purchase online now and ensure your projects have dependable, quality control components.
Order your NKK Series LB16CKG015D12JD illuminated pushbutton switch today and enhance your control panels with dependable, bright LED visibility and long-lasting operation.
Frequently Asked Questions
Where can I buy NKK Switches LB16CKG015D12JD?
You can click on the BUY or RFQ button to purchase LB16CKG015D12JD from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part LB16CKG015D12JD?
You can download the LB16CKG015D12JD datasheet or visit the NKK Switches website for support.
Who is the manufacturer of LB16CKG015D12JD?
NKK Switches
