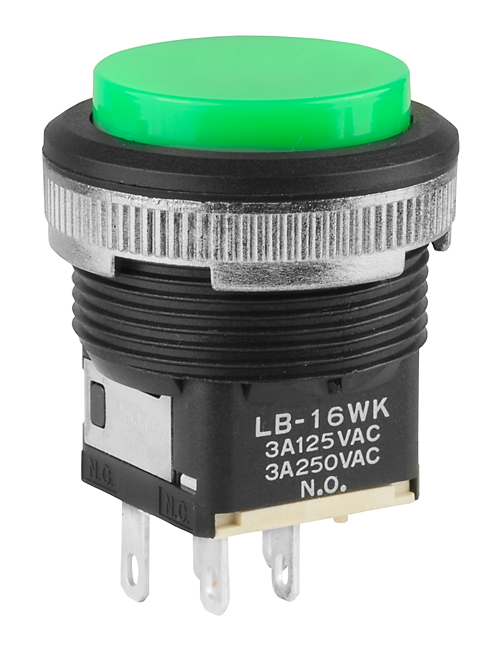

NKK Switches LB16WKW01FJ Waterproof Pushbutton Switch
The Standard Size Illumination Waterproof Pushbutton Switch from Series LB is designed for rugged industrial and outdoor environments. Equipped with front panel relamping, bright diffusion, and filtering systems, it offers full surface illumination with options for single or bicolor LEDs in colors like white, green, blue, red, amber, and green. Constructed with stainless steel clips for secure mounting, it features IP65 sealing, snap-action contacts for long electrical life, and a latchdown indicator ensuring circuit status. Its compact design minimizes behind-panel depth, making it ideal for demanding applications requiring water resistance and durability.
NKK Switches LB16WKW01FJ Waterproof Pushbutton Switch Specifications:
- Housing: Glass fiber reinforced polyamide (UL94V-0)
- Sealing: IP65 according to IEC60529 (NEMA 4 & 13)
- Contact Resistance: 50 milliohms maximum for silver; 100 milliohms maximum for gold
- Insulation Resistance: 200 megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC minimum between contacts for 1 minute
- Electrical Life: 200,000 operations minimum for maintained circuit
- Mechanical Life: 1,000,000 operations minimum
- Contact Ratings: 3A @ 125/250V AC or 0.4VA @ 28V DC
- Operating Temperature Range: -25°C to +50°C (illuminated), -25°C to +70°C (non-illuminated)
- Mounting: Stainless steel clips for panel thicknesses up to 4.0mm, includes splash cover option
- Dimensional: Recommended panel cutout Ø 22.0mm, maximum panel thickness 3.5mm with splash cover
- LED Options: Bright or super bright LEDs in various colors, with resistor options, polarity marked
- Lamp Compatibility: Incandescent, Neon, and LED lamps, with specific installation and replacement procedures
Buy the NKK LB16W– Reliable Waterproof Pushbutton for Industrial Applications
Order the NKK Waterproof Pushbutton Switch online today for reliable operation in demanding environments. Designed with IP65 sealing, multiple LED color options, and a compact form factor, it ensures long-lasting durability and secure mounting. Ideal for industrial, outdoor, and harsh condition applications. Easy to install with stainless steel clips, and features a robust snap-action contact mechanism for extended electrical and mechanical life. Enhance your control panels with this high-quality waterproof switch for dependable performance.
Get NKK LB16W waterproof pushbutton today—built for precision and long-lasting durability in harsh environments.
Frequently Asked Questions
Where can I buy NKK Switches LB16WKW01FJ?
You can click on the BUY or RFQ button to purchase LB16WKW01FJ from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part LB16WKW01FJ?
You can download the LB16WKW01FJ datasheet or visit the NKK Switches website for support.
Who is the manufacturer of LB16WKW01FJ?
NKK Switches
