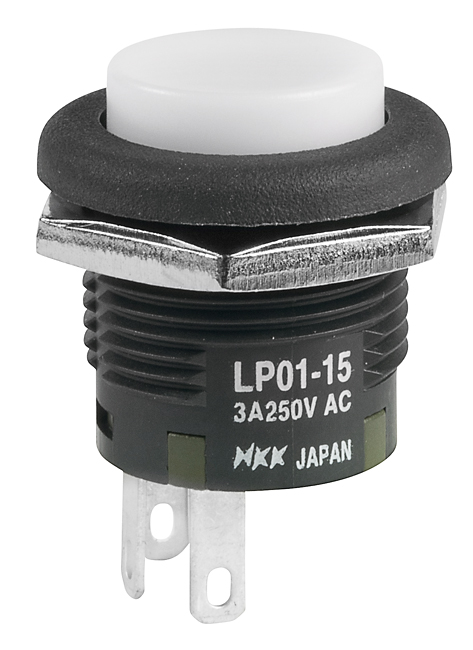

NKK Switches LP0115CCKW01B short body pushbutton switch
A short, illuminated pushbutton switch designed for panel mounting. Suitable for control panels and user interfaces, providing a clear and responsive actuation. It features a compact body with a length of approximately 0.551 inches (14.0mm), making it ideal for spaces where panel space conservation is necessary. The switch offers LED illumination in red, green, or amber for easy circuit status indication, and it is constructed with environmentally friendly, RoHS-compliant materials. The switch supports a resistive load of 3A at 125V AC/250V AC, with durable construction for up to 500,000 mechanical operations and 50,000 electrical operations, with a total travel of 0.118 inches (3.0mm). Its contact mechanism is snap-action with arc barriers to prevent crossover, housed in polycarbonate and UL94V-0 rated materials, suitable for a temperature range of -25°C to +70°C.
NKK Switches LP0115CCKW01B short body pushbutton switch Specifications:
- Electrical Capacity: 3A at 125V AC/250V AC, 3A at 30V DC
- Contact Resistance: 50 milliohms maximum
- Insulation Resistance: 200 megohms minimum at 500V DC
- Dielectric Strength: 1,000V AC minimum between contacts, 1,500V AC minimum between contacts and case
- Mechanical Life: 500,000 operations minimum
- Electrical Life: 50,000 operations at 3A, 125V/250V AC; 100,000 at 1A, 125V/250V AC
- Nominal Operating Force: 1.5N for single pole, 3.0N for double pole
- Travel: Total 0.118 inches (3.0mm)
- Actuator Material: Polycarbonate
- Housing Material: Bushing mount: Glass fiber reinforced polyamide; Snap-in mount: Polyphenylene ether
- Lamp Terminals: Phosphor bronze with silver or tin & copper plating
- Operating Temperature Range: -25°C to +70°C
- Humidity Resistance: 90-95% for 240 hours @ 40°C
- Vibration: 10-55Hz with peak-to-peak amplitude of 1.5mm for 2 hours in 3 directions
- Shock: 50G acceleration in multiple directions
- Mounting Torque: 0.8Nm
- Soldering: Manual or compatible reflow profile
- Standards: UL94V-0 rated housings and bases, recognized under File No. E44145, UL/CSA recognized
