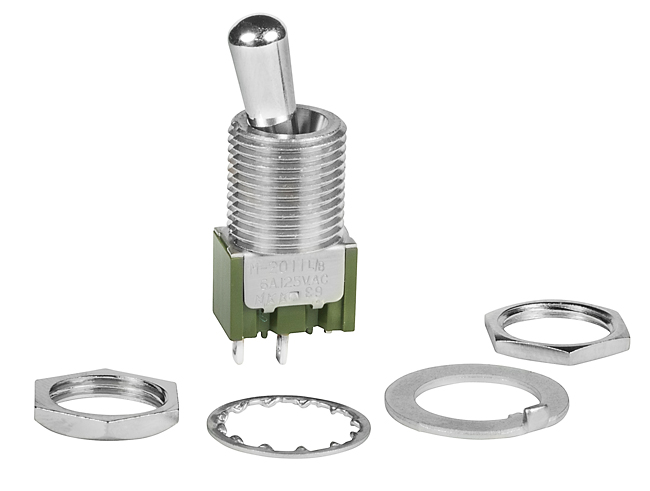

NKK Switches M2011BB1W01 Miniature Toggle Switch
Miniature toggle switch with multi-function operation, suitable for electronic control applications. Compact design allows easy integration into various devices. Features high insulation barriers, interlocked actuator, and high torque bushing for durability. Incorporates dual ratings with silver and gold contact options, offering reliable resistive capacity up to 6A @ 125V AC. Sealed terminals prevent contamination, and optional splashproof bushings ensure IP67 compliance. Perfect for use in control panels, machinery, and industrial automation with long mechanical and electrical life. Certified to UL and CSA standards, this switch ensures safety and performance.
NKK Switches M2011BB1W01 Miniature Toggle Switch Specifications:
- Electrical Capacity (Resistive Load): 6A @ 125V AC, 3A @ 250V AC
- Contact Resistance: 10 milliohms maximum for silver, 20 milliohms maximum for gold
- Insulation Resistance: 1,000 megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC between contacts for 1 min; 1,500V AC contacts to case
- Mechanical Life: 100,000 operations minimum; 50,000 for splashproof models
- Electrical Life: 25,000 operations minimum for silver, 50,000 for gold
- Angle of Throw: 25°
- Operating Temperature Range: -30°C to +85°C
- Vibration Resistance: 10-55Hz with peak-to-peak amplitude of 1.5mm for 2 hours
- Impact/Shock Resistance: 50G acceleration, 3 shocks per direction
- Enclosure: UL94V-0 rated polycarbonate case
- Sealing: Splashproof bushings meeting IP67 standards
- Mounting Torque: 3.0Nm for large bushing, 1.5Nm for others
- Soldering: Wave or manual soldering; lever must be in OFF position during
- Certifications: UL Recognized, CSA Certified, compliant with flammability standards
- Materials & Finishes: Brass with chrome plating, stainless steel frame, epoxy sealed terminals
- Environmental Data: Operating temp -30°C to +85°C, humidity resistance, vibration, and shock tested
Buy the Buy NKK Miniature Toggle Switch Part Number M2011BB1W01 Online
Experience superior performance and reliability with NKK's miniature toggle switch. Designed for industrial control and automation, it features dual ratings for versatile use, sealed terminals to prevent contamination, optional splashproof bushings meeting IP67 standards, and robust construction with chrome-plated brass and epoxy sealed terminals. Easy to install and maintain, this switch supports long-lasting operation with high electrical capacity, making it ideal for control panels, machinery, and industrial automation. Order online now for fast delivery and reliable performance.
Get NKK M2011BB1W01 today—built for durability with high electrical and mechanical life in control applications.
Frequently Asked Questions
Where can I buy NKK Switches M2011BB1W01?
You can click on the BUY or RFQ button to purchase M2011BB1W01 from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part M2011BB1W01?
You can download the M2011BB1W01 datasheet or visit the NKK Switches website for support.
Who is the manufacturer of M2011BB1W01?
NKK Switches
