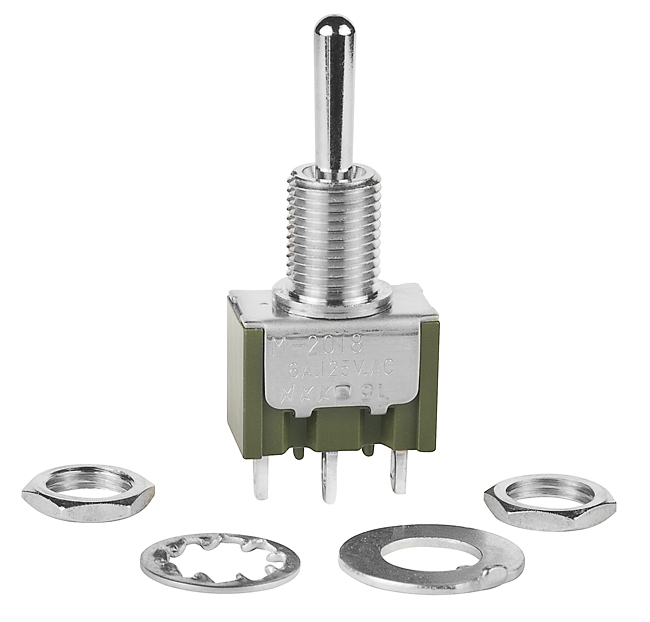

NKK Switches M2018SS1W01 Miniature Toggle Switch
This compact miniature toggle switch is designed for versatile multi-function switching applications in constrained spaces. It features a durable construction with high insulation barriers and antijamming design to protect contacts from damage and ensure reliable operation over at least 50,000 cycles. The switch supports resistive loads up to 6A at 125V AC, with dual ratings for power and logic levels, and comes with epoxy sealed terminals for contamination prevention. Suitable for industrial and electronic control environments, it complies with UL and CSA standards, ensuring safety and performance.
NKK Switches M2018SS1W01 Miniature Toggle Switch Specifications:
- Contact Resistance: 10 milliohms maximum for silver; 20 milliohms maximum for gold
- Insulation Resistance: 1,000 megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC minimum between contacts for 1 minute; 1,500V AC minimum between contacts and case for 1 minute
- Mechanical Life: 50,000 operations minimum for most models
- Electrical Life: 25,000 operations minimum for silver contacts, 50,000 for gold contacts
- Poles & Circuits: Available in SPST, DPST, 3PDT, 4PDT configurations
- Operating Temp Range: -30°C to +85°C
- Vibration Resistance: 10-55Hz, peak-to-peak amplitude 1.5mm
- Shock Resistance: 50G acceleration in multiple directions
- Sealing: Splashproof options meeting IP67 standards with O-rings inside & outside bushings
- Mounting Torque: 3.0Nm for large bushings, 1.5Nm for others
- Soldering: Wave or manual soldering; lever must be in OFF position during soldering
- Standards & Certifications: UL Recognized (File No. E44145), CSA Certified (File No. 023535_0_000)
- Materials: Brass with chrome or nickel plating, polycarbonate or polyethylene bushings, epoxy sealed terminals
Buy the Acme M2018SS1W01 – Reliable Toggle Switch for Industrial Applications
Get your reliable miniature toggle switch from Acme today. Designed for industrial use, supporting 6A loads at 125V AC, with sealed terminals for contamination resistance. Perfect for control panels and automation systems, it ensures durable performance with over 50,000 cycles of mechanical life. Easy to install with optional splashproof bushings, UL and CSA certified for safety. Order online now to upgrade your project with a compact, high-quality switching solution that guarantees consistent, dependable operation.
Order your Acme series M2018SS1W01 miniature toggle switch today and enhance your equipment with dependable, UL-rated switching performance.
Frequently Asked Questions
Where can I buy NKK Switches M2018SS1W01?
You can click on the BUY or RFQ button to purchase M2018SS1W01 from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part M2018SS1W01?
You can download the M2018SS1W01 datasheet or visit the NKK Switches website for support.
Who is the manufacturer of M2018SS1W01?
NKK Switches
