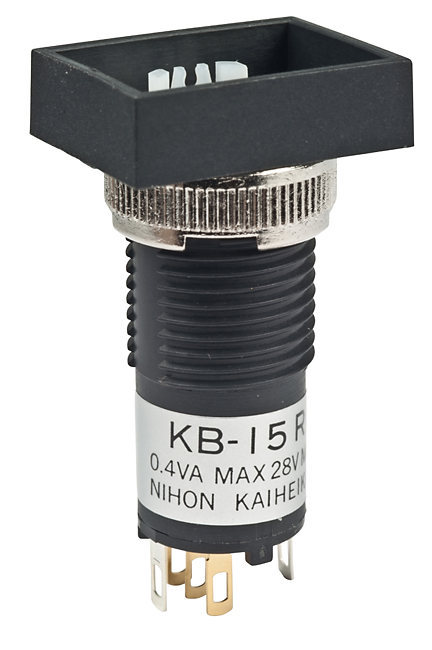

NKK Switches KB15RKG01 Miniature Pushbutton Switch
A miniature illuminated pushbutton switch designed for panel mounting. Suitable for various electronic and control applications, providing easy operation and visibility.
NKK Switches KB15RKG01 Miniature Pushbutton Switch Specifications:
- Pole configuration: Single & Double Pole
- Mounting types: Bushing, Snap-in
- Cap diameter: 12 mm
- Housing material: Polyamide (UL94V-0)
- Illumination: Bright LEDs in various colors with front panel relamping options
- Electrical ratings: 1A at 125/250V AC, 0.4VA @ 28V AC/DC for logic level
- Contact material: Silver for power, copper with gold plating for logic
- Mechanical life: 100,000 operations for illuminated models
- Operating temperature range: -25°C to +50°C for illuminated models
- Vibration resistance: 10-55Hz with peak-to-peak amplitude of 1.5mm
- Shock resistance: 50G acceleration in multiple directions
- Terminal types: Solder Lug, PC board adaptable
- Dimensions: 12mm diameter, stroke approximately 3.0mm travel
- Standards & certifications: UL recognized, CSA certified when ordered with marking
Buy the NKK Series KB Miniature Pushbuttons: KB15RKG01
Experience the quality of NKK miniature pushbutton switches. Perfect for control panels, offering durability, bright illumination, and easy installation. Customize with various colors and mount types to suit your application. Order online now and benefit from fast delivery, technical support, and reliable performance for your electronic projects or industrial control systems.
Get NKK KB15RKG01 today—built for precision and long-lasting durability.
Frequently Asked Questions
Where can I buy NKK Switches KB15RKG01?
You can click on the BUY or RFQ button to purchase KB15RKG01 from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part KB15RKG01?
You can download the KB15RKG01 datasheet or visit the NKK Switches website for support.
Who is the manufacturer of KB15RKG01?
NKK Switches
