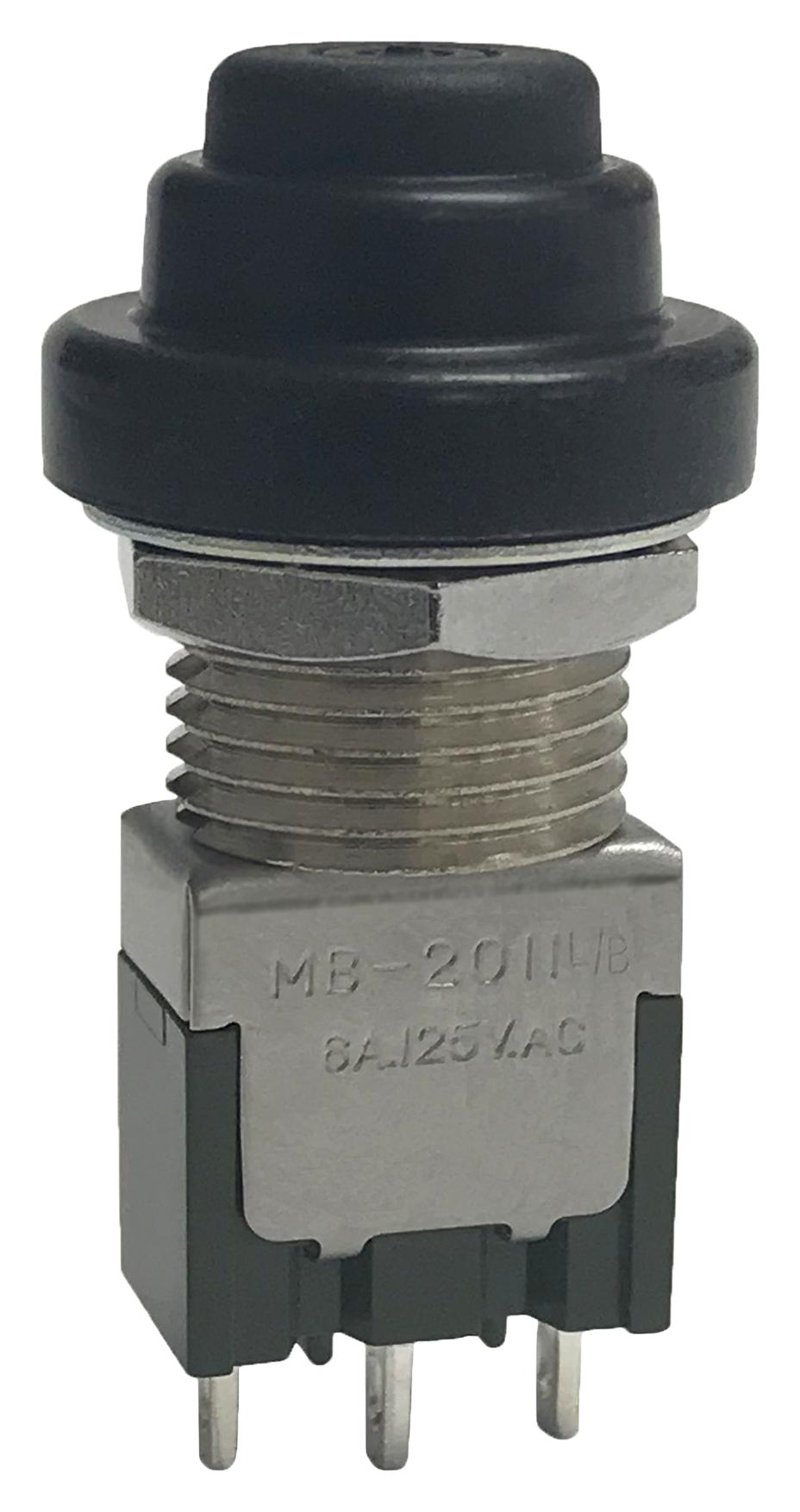

NKK Switches MB2011VA002 Miniature Pushbutton
The Miniature Pushbutton with Splashproof Boot is designed for reliable operation in various environments, featuring IP65 sealing for excellent splash resistance. Constructed with a silicone rubber boot for durability and ease of installation, it supports 2,000,000 mechanical operations and 100,000 electrical cycles. The switch has a compact bushing mount with a panel thickness capacity of up to 5.9mm, and a silver contact material rated at 6A at 125V AC and 3A at 250V AC. It’s ideal for control panels requiring rugged, splashproof pushbutton solutions suitable for industrial applications.
NKK Switches MB2011VA002 Miniature Pushbutton Specifications:
- Operating Temperature Range: -30°C to +85°C
- Ingress Protection: IP65 rated for splashproof sealing
- Contact Material: Silver alloy
- Power Rating: 6A at 125V AC, 3A at 250V AC
- Electrical Life: 100,000 operations
- Mechanical Life: 100,000 operations
- Plunger Travel: Pretravel 0.028” (0.71mm), Overtravel 0.043” (1.09mm), Total Travel 0.071” (1.80mm)
- Mounting: Bushing mount suitable for panel thickness up to 5.9mm
- Material: Polyacetal plunger, Brass with nickel plating, Stainless steel case
- Shock Resistance: 50G acceleration, vibration resistance, humidity tolerance of 90-95% for 96 hours
- Soldering: Manual soldering at 390°C for 4 seconds
- Standards: UL recognized, RoHS compliant
Buy the Buy NKK Switches Miniature Pushbutton Part Number MB2011VA002 Online
Discover the robust, splashproof miniature pushbutton with silicone boot designed for industrial control panels. Rated IP65, it supports 6A at 125V AC, 3A at 250V AC, and offers a durable construction with a 100,000 cycle electrical life. Easy to install with a bushing mount suitable for panels up to 5.9mm thick, it is ideal for demanding environments requiring long-lasting, reliable operation. Purchase today online for quick delivery and assured quality in industrial or automation projects.
Buy NKK Switches MB2011VA002 now and experience unmatched reliability and splashproof performance for demanding control applications.
Frequently Asked Questions
Where can I buy NKK Switches MB2011VA002?
You can click on the BUY or RFQ button to purchase MB2011VA002 from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part MB2011VA002?
You can download the MB2011VA002 datasheet or visit the NKK Switches website for support.
Who is the manufacturer of MB2011VA002?
NKK Switches
