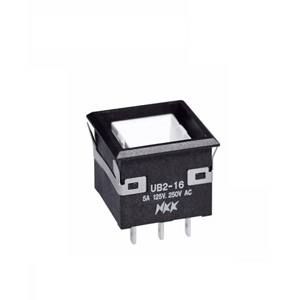

NKK Switches UB216KKW01N Low Profile Pushbutton
A compact, low-profile illuminated pushbutton switch designed for printed circuit board and solder mounting applications. It offers reliable operation with various illumination options, including bright and super bright LEDs, and features a rugged construction with polycarbonate and polyamide materials. The switch includes optional accessories such as protective guards and dust covers, and it meets safety standards for durability and environmental resistance. Its small size and versatile mounting make it ideal for space-constrained industrial and electronic control applications.
NKK Switches UB216KKW01N Low Profile Pushbutton Specifications:
- Electrical Capacity: 5A @ 125/250V AC, 5A @ 30V DC
- Power Level (silver): 0.4VA maximum @ 28V AC/DC
- Contact Resistance: 50 milliohms maximum for silver; 100 milliohms maximum for gold
- Insulation Resistance: 200 megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC minimum between contacts for 1 minute; 1,500V AC between contacts & case for 1 minute
- Mechanical Life: 1,000,000 operations minimum for momentary, 200,000 for alternate action
- Nominal Operating Force: Single Pole: 1.90N, Double Pole: 2.55N
- Travel: Pretravel 0.067” (1.7mm); Overtravel 0.024” (0.6mm); Total Travel 0.091” (2.3mm)
- Housing Material: Glass fiber reinforced polyamide (UL94V-0)
- Cap Material: Polycarbonate, finish: glossy
- Environmental Temp Range: Illuminated -25°C to +50°C, Nonilluminated -25°C to +70°C
- Vibration: 10-55Hz, peak-to-peak 1.5mm, 2 hours in 3 directions
- Shock: 50G, tested in 6 directions
- Mounting: Snap-in or PCB mounting, suitable for panel thickness 0.039” to 0.106”
- Terminals: Solder lug, epoxy sealed
- Standards: UL recognized, UL94V-0 housing and bezel
Buy the NKK UB2 – Reliable Low Profile Pushbutton for Industrial Applications
Order the NKK Low Profile Pushbutton switch online today and enjoy a compact, reliable switch designed for demanding industrial and electronic applications. Featuring bright or super bright LED illumination options, rugged polycarbonate housing, and versatile mounting options, this switch is perfect for space-constrained environments. It provides long-lasting durability, fast installation, and compliance with safety standards. Its high electrical capacity and extensive life cycle ensure dependable performance in various control systems, making it an ideal choice for modern automation and machinery controls.
Get NKK UB216KKW01N today—built for compact, space-saving control with reliable illumination and durable operation.
Frequently Asked Questions
Where can I buy NKK Switches UB216KKW01N?
You can click on the BUY or RFQ button to purchase UB216KKW01N from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part UB216KKW01N?
You can download the UB216KKW01N datasheet or visit the NKK Switches website for support.
Who is the manufacturer of UB216KKW01N?
NKK Switches
