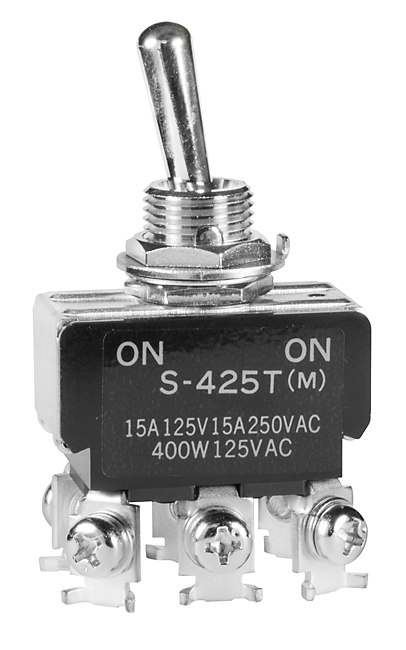

NKK Switches S425T Toggle Switch
This is a standard size toggle switch with low to high capacity switching capability. Suitable for various electronic applications requiring reliable on-off control.
NKK Switches S425T Toggle Switch Specifications:
- Contact Resistance: 10 milliohms maximum
- Insulation Resistance: 1,000 megohms minimum @ 500V DC
- Dielectric Strength: 2,000V AC minimum for 1 minute
- Mechanical Life: 50,000 operations minimum
- Electrical Life: 15,000 operations minimum
- Operating Temperature Range: -10°C through +70°C (+14°F through +158°F)
- Mounting Torque: 2.94Nm (26 lbsin) for double nut
- Panel Thickness: Shown beneath panel cutout in switch dimension drawings
- Soldering Time & Temperature: Manual Soldering; see Profile A in Supplement section
- Materials & Finishes: Brass with chrome plating for toggle, brass with chrome plating for bushing, melamine phenol case, steel with zinc plating case cover, copper with silver plating movable contact, silver alloy capped on copper with silver plating movable and stationary contacts, brass with tin plating terminals
- Standards & Certifications: UL Recognized, CSA Certified
Buy the Buy NKK Medium/High Capacity Toggle Switch Part Number S425T Online
Order the NKK toggle switch online today and ensure reliable switching for your electronic systems. With high durability and certified standards, this switch guarantees long-term performance. Perfect for industrial, automation, and consumer electronics, it supports a wide range of load capacities from resistive to inductive. Easy to install with sturdy construction and precise specifications, this switch helps prevent downtime and maintains optimal control. Shop now and upgrade your electrical setup effortlessly.
Buy NKK S425T toggle switch now and experience unmatched reliability and performance for your electronic projects.
Frequently Asked Questions
Where can I buy NKK Switches S425T?
You can click on the BUY or RFQ button to purchase S425T from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part S425T?
You can download the S425T datasheet or visit the NKK Switches website for support.
Who is the manufacturer of S425T?
NKK Switches
