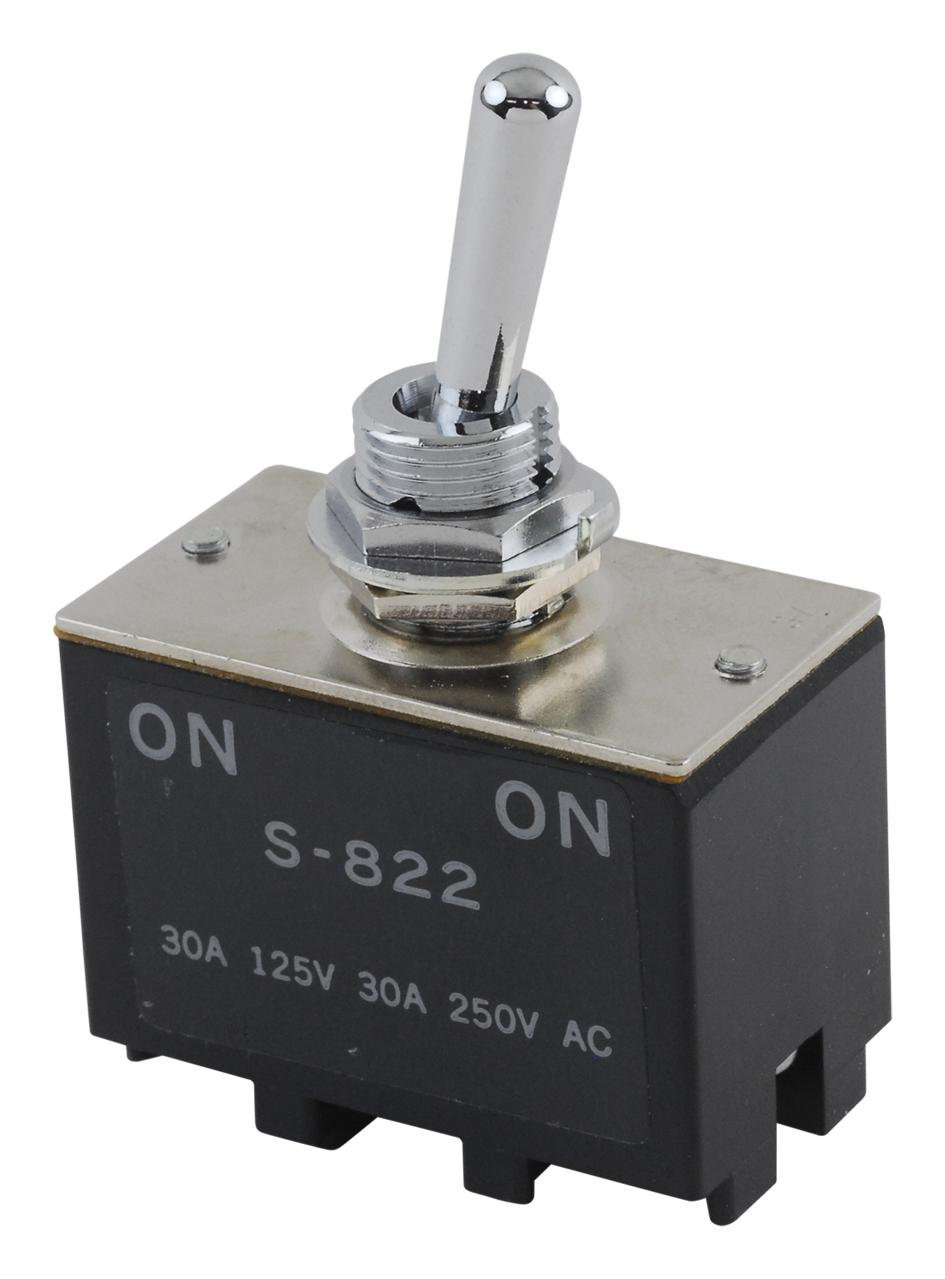

NKK Switches S822 High Capacity Toggle Switch
The S822 is a high-capacity double-pole double-throw toggle switch with screw lug terminals, designed for industrial and high-current applications. Featuring chrome-plated brass bushings and contact terminals, it ensures durability and reliable performance. The switch operates within a temperature range of 10°C to +70°C, with a maximum contact resistance of 10 milliohms, insulation resistance of at least 1000 megaohms at 500VDC, and dielectric strength of 2000VAC for 1 minute. Its robust construction supports at least 50,000 mechanical operations, making it suitable for demanding industrial environments.
NKK Switches S822 High Capacity Toggle Switch Specifications:
- Electrical Capacity: 50A at resistive load, 30A at inductive load, 125V/250V AC
- Maximum Contact Resistance: 10 milliohms
- Insulation Resistance: 1000 megaohms minimum @ 500V DC
- Dielectric Strength: 2000V AC minimum for 1 minute
- Mechanical Life: 50,000 operations minimum
- Materials: Brass with chrome plating, phenolic resin case
- Environmental Temp Range: 10°C through +70°C
- Panel Mounting: with mounting screws, maximum panel thickness 4.0mm
- Standards & Certifications: Recognized under UL, CSA, and cULus when ordered with markings
Buy the NKK Series S High Capacity Toggle Switch: S822
Order the NKK S822 high-capacity toggle switch online today to ensure reliable switching for your industrial and high-current applications. With a robust construction featuring chrome-plated brass bushings, screw lug terminals, and a phenolic resin case, this switch delivers excellent durability and long operational life. Its high current capacity of 50A resistive and 30A inductive load ratings, along with UL, CSA, and cULus recognition, make it the ideal choice for industrial equipment, automation systems, and control panels. Enjoy quick delivery and seamless purchase experience.
Buy NKK S822 high capacity toggle switch now and experience unmatched reliability and performance for demanding industrial applications.
Frequently Asked Questions
Where can I buy NKK Switches S822?
You can click on the BUY or RFQ button to purchase S822 from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part S822?
You can download the S822 datasheet or visit the NKK Switches website for support.
Who is the manufacturer of S822?
NKK Switches
