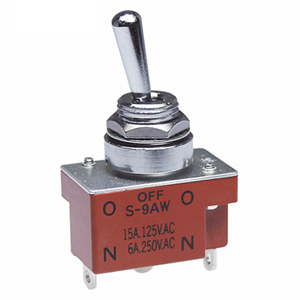

NKK Switches S9AW Standard Toggle Switch
This standard size toggle switch offers low to high capacity ratings, suitable for controlling electrical circuits with various load requirements. Designed with durable materials like brass with chrome plating and phenolic resin, it ensures reliable performance. The switch features a 30°C to +70°C operating temperature range, IP67 sealing for splashproof applications, and an electrical life of up to 50,000 operations. It complies with UL, CSA standards, and includes optional splashproof boots and panel seals for different environments. Easy installation and panel mounting, it’s ideal for industrial and automation use.
NKK Switches S9AW Standard Toggle Switch Specifications:
- Electrical Capacity (Resistive & Inductive Load): 15A 125V, 6A 250V, 20A 30V, 8A 125V, 25A 125V for different models
- Materials: Brass with chrome plating, phenolic resin, steel with zinc plating, copper with silver plating, silver alloy capped on copper with silver plating, brass with tin plating
- Operating Temperature Range: 30°C to +70°C (Splashproof models: 22°F to +158°F; other models: 14°F to +158°F)
- Sealing: IP67 standard for splashproof & lever lock panel seal models
- Mechanical Life: Minimum 30,000 cycles; Electrical Life: up to 50,000 operations
- Mounting Torque: 1.47 Nm (13 in-lb) on single nut models, 2.94 Nm (26 in-lb) on double nut models
- Panel Thickness: Up to 4.0 mm (0.158 inch)
- Soldering Temperature & Time: As per profile A in the supplement section
- Standards & Certifications: UL Recognized, CSA Certified, recognized when ordered with markings
Buy the Buy NKK Standard Toggle Switch Part Number S9AW Online
Purchase the NKK Series S9AW toggle switch online today to benefit from its high capacity ratings, IP67 splashproof sealing, and robust construction. It is perfect for industrial control circuits requiring reliable performance and durability. With UL and CSA certification, this standard toggle switch guarantees safety and dependability. Easy to install with panel mounting options, it supports a wide operating temperature range and offers an electrical life of up to 50,000 operations. Make your selection now for a trusted control component for your projects.
Order your NKK Series S9AW toggle switch today and ensure dependable control with its high capacity and IP67 sealing for industrial applications.
Frequently Asked Questions
Where can I buy NKK Switches S9AW?
You can click on the BUY or RFQ button to purchase S9AW from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part S9AW?
You can download the S9AW datasheet or visit the NKK Switches website for support.
Who is the manufacturer of S9AW?
NKK Switches
