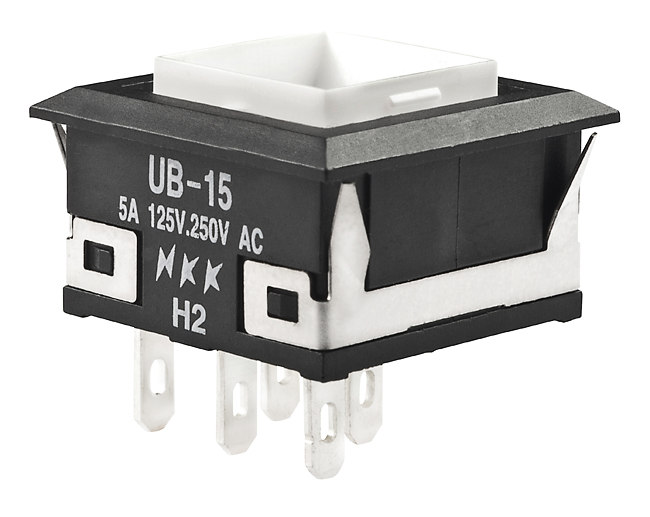

NKK Switches UB15KKW016B Illuminated Pushbutton Switch
Low-profile illuminated pushbutton switch featuring durable polycarbonate housing and solder terminals. Designed for panel mounting, this switch is ideal for compact spaces, offering reliable operation with bright or super bright LED illumination in various colors. It supports momentary and alternate actions, with high electrical and mechanical life ratings ensuring long-term performance. Suitable for industrial control, automation, and electronic projects requiring compact design and dependable switching capabilities.
NKK Switches UB15KKW016B Illuminated Pushbutton Switch Specifications:
- Housing/Bezel Material: UL94V-0 polycarbonate
- Operating Temperature Range: -20°C through +70°C and -25°C through +50°C for illuminated versions
- Luminaire Colors: Red, Amber, Green, White, Blue with various Cap and Diffuser options
- Electrical Ratings: 5A @ 125/250V AC or 5A @ 30V DC, 0.4VA max @ 28V AC/DC
- Contact Resistance: 50 milliohms maximum for silver, 100 milliohms maximum for gold
- Insulation Resistance: 200 megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC for 1 minute between contacts, and 1,500V AC between contacts and case
- Mechanical Life: 1,000,000 operations for momentary, 200,000 for alternate action
- Electrical Life: 200,000 operations for resistive load of 3A @ 125V AC
- Nominal Operating Force: 1.9N for single pole square, 2.55N for double pole square
- Travel: Pretravel 0.067” (1.7mm), Overtravel 0.024” (0.6mm), Total Travel 0.091” (2.3mm)
- Environmental Resistance: Humidity 95% for 96 hours at 40°C, vibration 3Hz for 2 hours, shock 50G
- Mounting: Snap-in frame for panel thickness 0.039” ~ 0.126” (1.0mm ~ 3.2mm)
- LED Features: Bright or super bright, various colors, with polarity marking, and integrated in switch housing
Buy the Buy NKK Switches Low Profile Pushbutton Part Number UB15KKW016B Online
Elevate your control panel with the NKK Switches illuminated pushbutton switch, featuring a rugged polycarbonate housing, multiple LED color options, and high electrical reliability. Perfect for industrial control, automation, and electronic projects requiring compact design and durability. Supports both momentary and alternate actions, ensuring long-lasting operation with a mechanical life of up to 1,000,000 cycles. Easy to install with snap-in mounting, this switch delivers reliable performance in demanding environments, making it an essential component for professional and industrial applications.
Buy NKK Switches UB15KKW016B pushbutton switch now and experience unmatched reliability and performance in compact applications.
Frequently Asked Questions
Where can I buy NKK Switches UB15KKW016B?
You can click on the BUY or RFQ button to purchase UB15KKW016B from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part UB15KKW016B?
You can download the UB15KKW016B datasheet or visit the NKK Switches website for support.
Who is the manufacturer of UB15KKW016B?
NKK Switches
