NKK Switches UB15NBKG015DJB Low Profile Pushbutton Switch
A low-profile, illuminated pushbutton switch suitable for PC and solder connections. Designed for easy operation and discreet installation in electronic devices.
NKK Switches UB15NBKG015DJB Low Profile Pushbutton Switch Specifications:
- Poles & Circuits: Single Pole, Double Pole
- Mounting Types: PCB Mounting, Snap-in Mounting
- Cap Colors & Types: Red, Amber, Green, White, Blue, Clear; Full Face, Spot Illumination
- LED Forward Voltage: 1.85V (Red), 2.0V (Amber), 2.1V (Green), 3.2V (White/Blue)
- LED Peak Current: 30mA (Red, Amber, White, Green, Blue)
- Electrical Capacity: 5A @ 125/250V AC, 5A @ 30V DC
- Contact Resistance: 50 milliohms max for silver, 100 milliohms max for gold
- Dielectric Strength: 1,000V AC contact-to-contact, 1,500V AC contact-to-case
- Operating Temperature Range: -25°C to +50°C (Illuminated), -20°C to +70°C (Nonilluminated)
- Material: Glass fiber reinforced polyamide (UL94V-0), Polycarbonate lens, Stainless steel components
- Mechanical Life: 1,000,000 operations minimum
- Electrical Life: 200,000 operations minimum
- Switch Force: 1.9N (single pole), 2.55N (double pole), 3.1N (rectangular with built-in bezel)

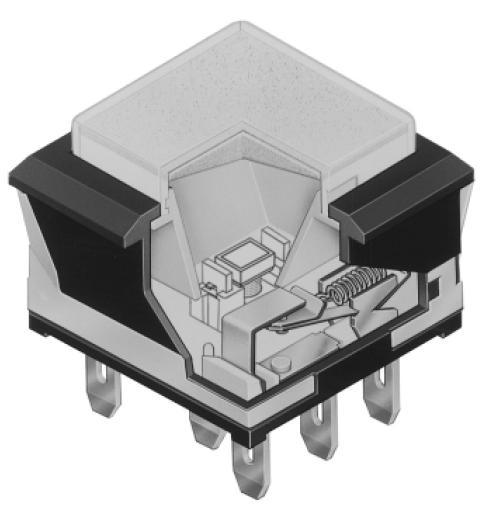

Buy the Buy NKK Switches UB15NBKG015DJB Low Profile Illuminated Pushbutton Switch Part Number Online
Enhance your electronic assemblies with the NKK Series UB low profile pushbutton switch. Featuring robust construction, multiple illumination color options, and high electrical and mechanical life, this switch is perfect for compact and demanding applications. Easy to install with PCB or snap-in mounting options, it provides reliable operation in various industrial environments. Whether used in control panels, instrumentation, or automation systems, this switch combines durability with ease of use. Order online now to ensure fast delivery and quality assurance for your projects.
Order your NKK Series UB low profile illuminated pushbutton today and give your electronic projects the dependable quality they deserve.
Frequently Asked Questions
Where can I buy NKK Switches UB15NBKG015DJB?
You can click on the BUY or RFQ button to purchase UB15NBKG015DJB from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part UB15NBKG015DJB?
You can download the UB15NBKG015DJB datasheet or visit the NKK Switches website for support.
Who is the manufacturer of UB15NBKG015DJB?
NKK Switches
