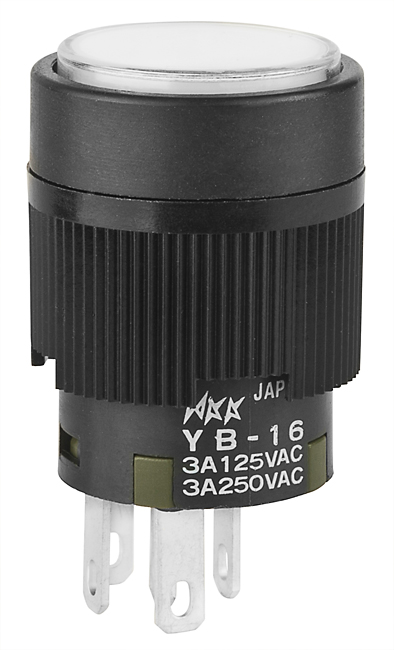

NKK Switches YB16CKW012CF12JB Illuminated Pushbutton Switch
The illuminated pushbutton switch is engineered for panel mounting, offering a compact design for effortless installation in control panels. It features a high-quality LED illumination for clear indication, durable construction with thermoplastic elastomer seals for splashproof and dust-tight performance, and a choice of colorful lens options including clear, red, yellow, green, and blue. This switch supports both momentary and maintained contacts, with ratings of 3A at 125/250V AC. It is ideal for automation, industrial control, and machinery applications requiring reliable and visible operation.
NKK Switches YB16CKW012CF12JB Illuminated Pushbutton Switch Specifications:
- Housing Material: Thermoplastic Elastomer, UL94V-0
- Contact Ratings: 3A at 125/250V AC, 0.4VA at 28V AC/DC
- Illumination: LED with color options including red, green, blue, yellow, white, with or without resistors
- Switch Contact Type: SPST, momentary or maintained
- Mounting: Bushing or snap-in, panel thickness 0.020" to 0.197" (0.5mm to 5.0mm)
- Travel: Pretravel 0.059" (1.5mm), total travel 0.118" (3.0mm)
- Mechanical Life: 1,000,000 operations minimum
- Electrical Life: 200,000 operations minimum
- Operating Temperature Range: -25°C to +70°C
- Ingress Protection: IP65 for panel seal models
- Pushbutton Diameter: 15.0 mm
- Color Options: Solid, spot illuminated, or LED with various lens colors
- Certifications: UL, CSA recognized when ordered with marking, recognized models available
Buy the NKK Series YB Illuminated Pushbutton: YB16CKW012CF12JB
Order the NKK Series YB16CKW012CF12JB illuminated pushbutton switch online today to enhance your control panel with bright LED illumination, durable construction, and reliable switching performance. Designed for ease of installation with a compact body, this switch offers vibrant color options including red, green, blue, yellow, and white, supported by robust ratings of 3A at 125/250V AC. Its splashproof IP65 design ensures lasting operation in demanding industrial environments. Perfect for automation, machinery, and control systems where visibility and durability are critical.
Buy NKK Series YB16CKW012CF12JB illuminated pushbutton now and experience unmatched reliability, visible LED indicators, and rugged performance for industrial control.
Frequently Asked Questions
Where can I buy NKK Switches YB16CKW012CF12JB?
You can click on the BUY or RFQ button to purchase YB16CKW012CF12JB from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part YB16CKW012CF12JB?
You can download the YB16CKW012CF12JB datasheet or visit the NKK Switches website for support.
Who is the manufacturer of YB16CKW012CF12JB?
NKK Switches
