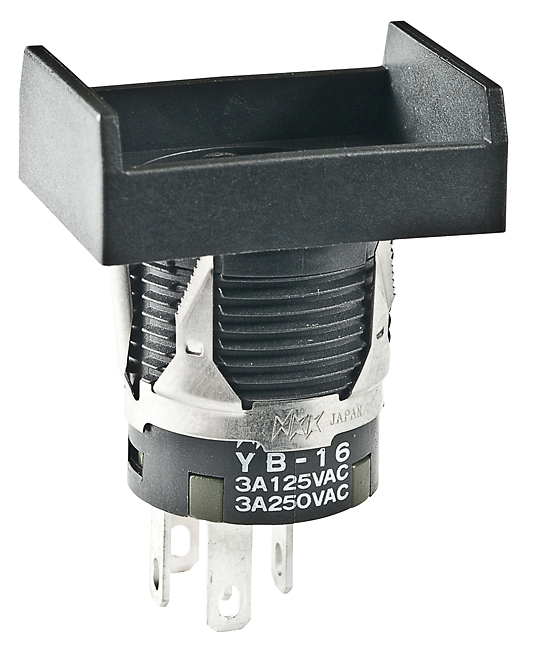

NKK Switches YB16NKW01 Illuminated Panel Switch
This compact, illuminated control switch is ideal for panel mounting where space is limited. Designed with a short body for streamlined installation, it features reliable illumination options using LEDs or incandescent lamps for enhanced visibility. The switch supports various mounting types, including bushing and snap-in, and is constructed from durable materials like polyamide and thermoplastic elastomer. It is rated for 3A at 125/250V AC, with IP65 sealing for dust and water resistance, making it suitable for industrial control panels requiring robust, easy-to-operate switches with clear indicator illumination.
NKK Switches YB16NKW01 Illuminated Panel Switch Specifications:
- Housing Material: Polyamide with UL94V-0 flammability rating
- Sealing: IP65 dust and water proof panel seal
- Electrical Capacity: 3A at 125/250V AC, 0.4VA at 28V AC/DC maximum
- Contacts Resistance: 50 milliohms for silver, 100 milliohms for gold
- Insulation Resistance: 200 megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC minimum between contacts for 1 minute, 1,500V AC minimum between contacts and case
- Mechanical Life: 1,000,000 operations
- Electrical Life: 200,000 operations
- Operating Temperature Range: -25°C through +50°C
- Mounting Options: Bushing, snap-in, panel seal
- Panel Thickness Compatibility: 0.020” to 0.118”
- Dimensions: Compact short body design for space-saving application
Buy the Buy NKK Short Body Pushbuttons Part Number YB16NKW01 Online
Purchase the NKK illuminated panel switch YB16NKW01 online today to enhance your control panel. Designed with a short body for space efficiency, it offers IP65 sealing for dust and water resistance, supporting 3A rating at 125/250V AC. Made from durable materials such as polyamide and thermoplastic elastomer, this switch ensures reliable operation and long service life. Easy to install with multiple mounting options, it provides clear illumination for improved visibility in industrial and automation applications. Order now for dependable performance and quick delivery.
Get NKK YB16NKW01 today—crafted for reliable switching and long-lasting durability in industrial environments.
Frequently Asked Questions
Where can I buy NKK Switches YB16NKW01?
You can click on the BUY or RFQ button to purchase YB16NKW01 from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part YB16NKW01?
You can download the YB16NKW01 datasheet or visit the NKK Switches website for support.
Who is the manufacturer of YB16NKW01?
NKK Switches
