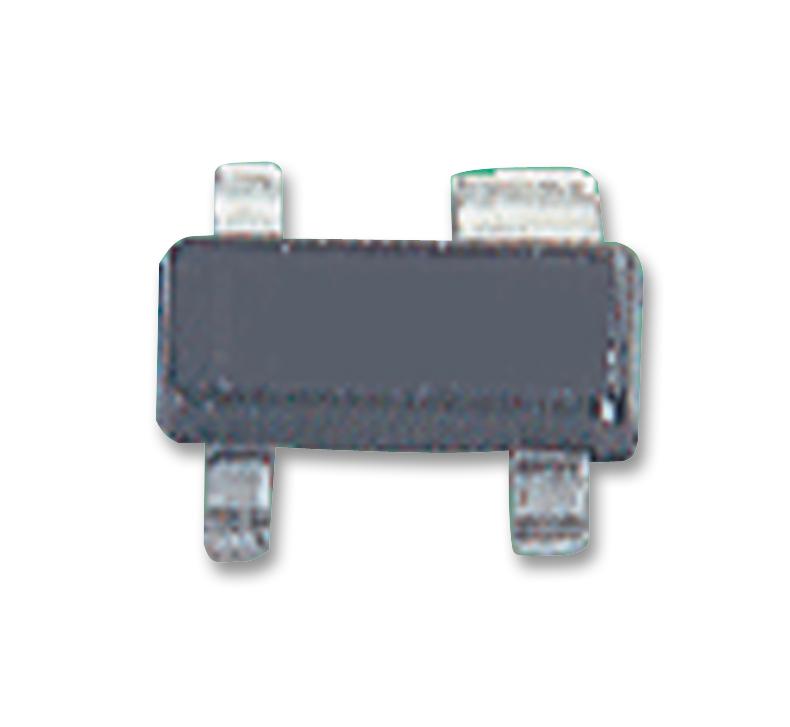

NXP BFU520R High-Speed RF Transistor
The BFU520 is a high-speed, low-noise NPN silicon RF transistor designed for broadband amplification and low noise applications in the 2 GHz frequency range. Encased in a compact 4-pin SOT143B package, it features excellent gain, stable performance, and high breakdown voltages suitable for IoT, ISM, and RF communication systems. Its low noise figure of 0.65 dB at 900 MHz, maximum stable gain of 20 dB, transition frequency of 10.5 GHz, and power dissipation up to 450 mW make it ideal for high-speed RF amplification and oscillation applications in modern electronics.
NXP BFU520R High-Speed RF Transistor Specifications:
- Package: Plastic 4-pin SOT143B surface-mounted
- Collector-Base Voltage: 24 V
- Collector-Emitter Voltage: 12 V
- Emitter-Base Voltage: 2 V
- Collector Current: 5 to 30 mA
- Power Dissipation: 450 mW at Tsp < 87°C
- Transition Frequency: 10.5 GHz
- Maximum Gain: 20 dB at 900 MHz
- Minimum Noise Figure: 0.65 dB at 900 MHz
- DC Current Gain: 60 to 200 (at 5 mA, 8 V)
- Collector Capacitance: 0.52 pF
- Operating Temperature Range: -55°C to +150°C
- Handling: Sensitive to ElectroStatic Discharge (ESD), follow precautions
- Applications: Broadband amplifiers up to 2 GHz, low noise amplifiers for ISM, ISM band oscillators
Buy the NXP BFU520 Reliable RF Transistor for Industrial Applications
Order the NXP BFU520 RF transistor today for exceptional broadband performance and low noise operation up to 2 GHz. Perfect for RF amplifiers, oscillators, and low-noise circuits, this device offers high gain, stability, and robust breakdown voltages in a compact SOT143B package. Designed for high-speed applications, it ensures consistent performance in industrial and communication systems. Elevate your RF designs by purchasing online now and enjoy fast delivery, reliable quality, and technical support from leading electronics supplier channels.
Buy NXP BFU520 now and experience unmatched reliability and high-frequency performance in RF amplification and communication systems.
Frequently Asked Questions
Where can I buy NXP BFU520R?
You can click on the BUY or RFQ button to purchase BFU520R from an authorized NXP distributor.
How do I troubleshoot issues or seek technical support for part BFU520R?
You can download the BFU520R datasheet or visit the NXP website for support.
Who is the manufacturer of BFU520R?
NXP
