NXP MCIMX351AJQ5C Automotive Processor
The MCIMX351AJQ5C is a high-performance automotive processor based on the ARM1136JF-S core, supporting multimedia, graphics, and connectivity interfaces including USB, Ethernet, CAN, and MIPI. It features advanced power management with clock gating and power gating techniques for energy efficiency, along with integrated image processing units (IPU) and a hierarchical memory architecture with L1 caches and a 128-Kbyte L2 cache. Designed for automotive infotainment, navigation, and multimedia applications, it supports external memory interfaces such as DDR2, DDR3, SDRAM, NAND Flash, and NOR Flash. The package is a RoHS-compliant MAPBGA with 17 x 17 mm dimensions and 0.8 mm pitch, suitable for complex embedded automotive systems.
NXP MCIMX351AJQ5C Automotive Processor Specifications:
- Core: ARM1136JF-S, ARM v6 architecture
- Caches: 16-Kbyte instruction cache, 16-Kbyte data cache, 128-Kbyte L2 cache
- Memory: Support for DDR2, DDR3, SDRAM, NAND Flash, NOR Flash
- Interfaces: USB 2.0 (host and OTG), Ethernet MAC 10/100 Mbps, CAN, CSI, USB PHYs, SDIO/MMC, PATA, CE-ATA
- Power Management: Clock gating, power gating, well biasing, dynamic voltage reduction
- Memory Support: External memory interfaces for DDR2, DDR3, SDRAM, NAND, NOR

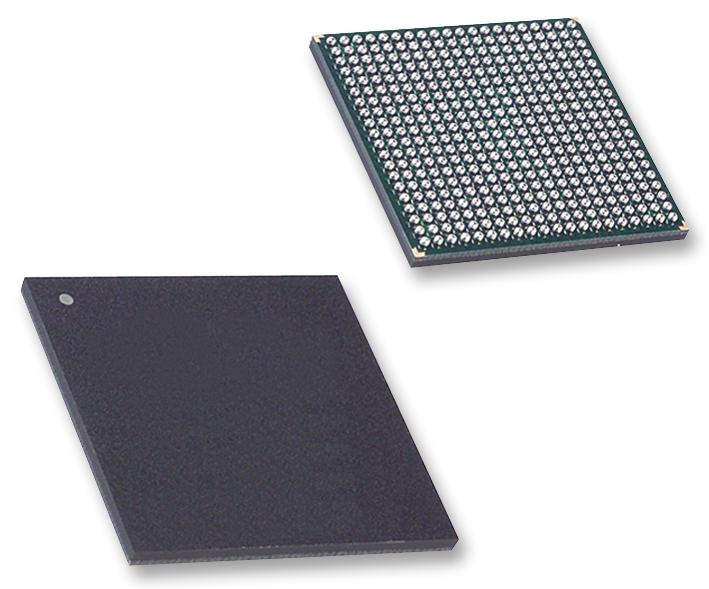

- Package: RoHS-compliant MAPBGA, 17 x 17 mm, 0.8 mm pitch
- Temperature Range: -40°C to 85°C
- Operating Frequency: Up to 532 MHz
- Voltage: VDD core 1.22V - 1.47V, I/O supply VCC 1.75V - 3.6V
- Power Consumption: Active mode up to 400 mA, in standby modes significantly lower
- Power Modes: Wait, Doze, and Stop with specific control of cache, PLLs, and clocks
- Revision: 2.0
- RoHS RoHS-compliant, lead-free
Buy the Buy Freescale MCIMX351AJQ5C Part Number Online
Purchase the Freescale MCIMX351AJQ5C online today to bring advanced multimedia, graphics, and connectivity to your automotive systems. This high-performance ARM1136JF-S core processor supports extensive interfaces like USB 2.0, Ethernet, CAN, and external memory options including DDR2, DDR3, NAND, and NOR Flash. Its integrated image processing unit and hierarchical cache architecture ensure smooth operation for infotainment and navigation applications. The RoHS-compliant MAPBGA package with 17x17 mm size and 0.8 mm pitch guarantees reliable integration in automotive electronic modules, offering efficiency and durability for demanding environments.
Order your Freescale MCIMX351AJQ5C automotive processor today and enhance your multimedia and navigation systems with top-tier performance.
Frequently Asked Questions
Where can I buy NXP MCIMX351AJQ5C?
You can click on the BUY or RFQ button to purchase MCIMX351AJQ5C from an authorized NXP distributor.
How do I troubleshoot issues or seek technical support for part MCIMX351AJQ5C?
You can download the MCIMX351AJQ5C datasheet or visit the NXP website for support.
Who is the manufacturer of MCIMX351AJQ5C?
NXP
