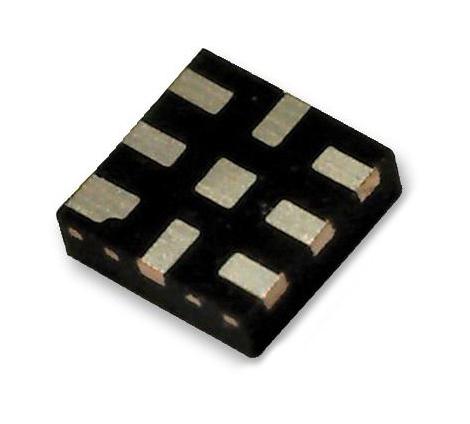

NXP NT3H1201W0FHKH Energy Harvesting NFC Tag
The NT3H1201 energy harvesting NFC Forum Type 2 Tag features contactless NFC communication at 13.56 MHz with data transfer rates up to 106 kbit/s. It supports I2C interface for microcontroller communication, configurable field detection, and energy harvesting to power external devices. The device offers 2k bytes of user memory, static and dynamic lock bytes for security, and a capability container facilitating multiple applications like smart automation, IoT, and access control. Designed for reliable, low-power operation, it features flexible memory organization, high data integrity, and bi-directional RF and I2C data transfer, making it suitable for various contactless and embedded systems.
NXP NT3H1201W0FHKH Energy Harvesting NFC Tag Specifications:
- Operating frequency: 13.56 MHz
- Data transfer rate: up to 106 kbit/s
- Memory: 2048 bytes user memory, static and dynamic lock bytes
- Energy harvesting: Vout voltage up to 3.2V, typically 5mA at 2V
- RF communication range: up to 100mm depending on antenna and field strength
- Power supply: Vcc from external or RF field
- EEPROM endurance: 500,000 cycles
- Retention time: 20 years
- RF protocol: ISO/IEC 14443 Type A compliant
- RFID compatibility: NFC Forum Type 2 Tag
- Pin configuration: XQFN8, TSSOP8 packages
- Operational temperature: -40°C to +95°C
- Voltage on FD pin: -3.6V
- Energy harvesting current: typically 5mA
- Energy storage capacitor: 150-200nF recommended
Buy the NXP NT3H1201 – Reliable NFC Type 2 Tag for Industrial Applications
Buy the NXP NT3H1201 energy harvesting NFC Type 2 Tag online today and enhance your contactless systems with secure, reliable communication, and energy harvesting capabilities. Designed for versatile industrial applications, this tag provides robust data transfer, high memory capacity, and security features suitable for automation, IoT, and embedded solutions. With easy integration via NFC and I2C interfaces, it ensures seamless connectivity and efficient energy management, making it an ideal choice for your project needs. Secure your orders now and benefit from fast delivery and technical support.
Order your NXP Series NT3H1201 energy harvesting NFC tag today and leverage reliable contactless communication for industrial and IoT projects.
Frequently Asked Questions
Where can I buy NXP NT3H1201W0FHKH?
You can click on the BUY or RFQ button to purchase NT3H1201W0FHKH from an authorized NXP distributor.
How do I troubleshoot issues or seek technical support for part NT3H1201W0FHKH?
You can download the NT3H1201W0FHKH datasheet or visit the NXP website for support.
Who is the manufacturer of NT3H1201W0FHKH?
NXP
