NXP KIT34704BEPEVBE Datasheet & Stock

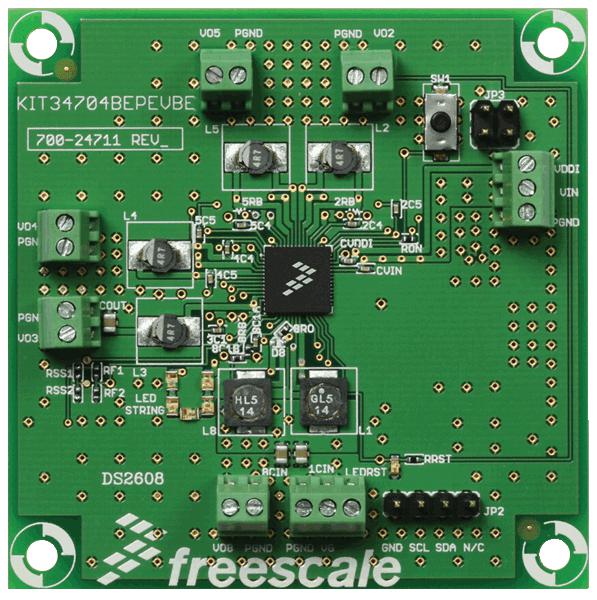

The Evaluation Kit features the 34704A is a multi-channel Power Management IC used to address power management needs for various multimedia application microprocessors. Its ability to provide either 5 or 8 independent output voltages with a single input power supply together with its high efficiency, make it ideal for portable devices powered up by Li-Ion/polymer batteries or for USB powered devices as well.




Dynamic voltage scaling on all regulators

Selectable voltage mode control or current mode control on REG8

I²C programmability

Output under-voltage and over-voltage detection for each regulator

Over-current limit detection and short-circuit protection for each regulator

Thermal limit detection for each regulator, except REG7

Integrated compensation for REG1, REG3, REG6, and REG8

True cutoff on all of the boost and buck-boost regulators

5µA maximum shutdown current (All regulators are off, 5.5V VIN)

True cut off on all of the boost and buck-boost regulators





Applications


Power Management,

Power Management






Contents

Eval Board MC34704A, KITUSBI2CEVME USB to I2C Board, USB A-B & I2C Communication Cable
