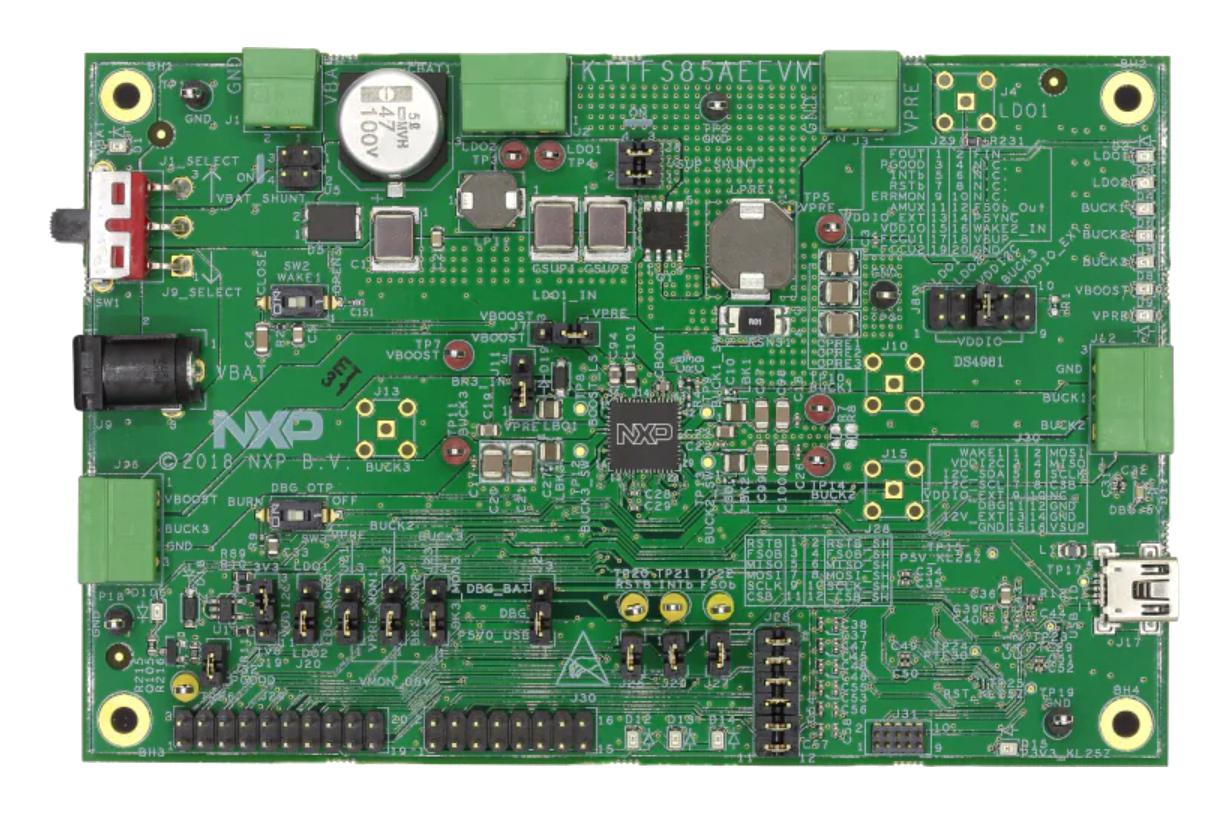

NXP KITFS85AEEVM Fail-safe Power IC
The KITFS85AEEVM is a fail-safe system basis chip with multiple switch mode power supplies (SMPS) and linear regulators (LDO). It features automotive-grade safety compliance, with integrated monitoring, safety functions, and flexible configuration options for radar, vision, ADAS, and infotainment applications. The chip supports deep fail-safe, ASIL B and D, and includes watchdog timers, voltage and temperature supervision, precise sequencing, and configurable regulation parameters. It ensures reliable power management for complex automotive systems, with comprehensive safety features and external component optimization for high efficiency and secure operation.
NXP KITFS85AEEVM Fail-safe Power IC Specifications:
- Part Number: KITFS85AEEVM
- Application Target: Automotive safety systems, radar, vision, ADAS, infotainment
- Package: QFN (Sawn), thermally enhanced, 8 x 8 mm, 56 pins
- Maximum Input Voltage: 60 V (VPRE at 455 kHz), 18 V (VPRE at 2.22 MHz)
- Outputs: Multiple switch mode and linear regulators, configurable voltage 0.8 V to 5.0 V
- Output Currents: Up to 3.6 A for buck regulators, 400 mA for LDOs
- Switching Frequencies: 455 kHz (forced PWM), 2.22 MHz (APS mode)
- Safety Levels: ASIL B and D, compliant with ISO 26262, AEC-Q100 rev H Grade 1
- Monitoring: Voltage, overcurrent, thermal shutdown, and functional safety checks
- Protection: Overvoltage, undervoltage, thermal shutdown, and emergency stop features
- Communication: SPI, I2C interface for configuration and monitoring
- Power Sequencing: Configurable startup and shutdown sequences, multiple slots
- External Components: Diodes, inductors, capacitors per design guidelines
- Operating Range: -40°C to +125°C, supply voltage up to 60 V
- Safety Certifications: ISO 26262, AEC-Q100 rev H, ASIL B/D capable
Buy the NXP Fail-safe power IC Series KITFS85AEEVM: Fail-safe power management IC with multiple SMPS and LDO, automotive safety
Order the NXP KITFS85AEEVM fail-safe power management IC online today. Perfect for automotive safety-critical applications, it offers multiple SMPS and LDO, extensive safety features, and flexible configuration options. Ensure reliable power with integrated voltage and temperature monitoring, robust protection circuits, and compliance with industry standards. Designed for radar, ADAS, vision systems, and infotainment, this chip guarantees safety, efficiency, and dependability. Buy now to secure your automotive safety solutions with proven performance and advanced safety features.
Get NXP KITFS85AEEVM fail-safe power IC today—designed for automotive safety and high reliability, with integrated monitoring and configurable outputs.
Frequently Asked Questions
Where can I buy NXP KITFS85AEEVM?
You can click on the BUY or RFQ button to purchase KITFS85AEEVM from an authorized NXP distributor.
How do I troubleshoot issues or seek technical support for part KITFS85AEEVM?
You can download the KITFS85AEEVM datasheet or visit the NXP website for support.
Who is the manufacturer of KITFS85AEEVM?
NXP
