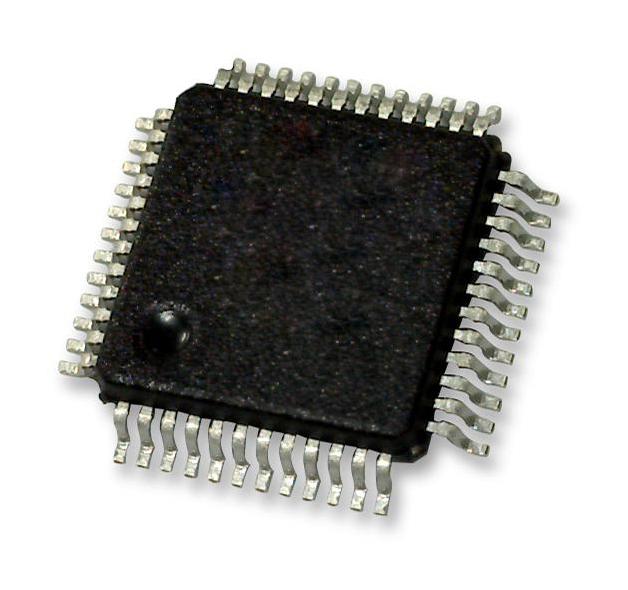

NXP MC33814AE Small Engine Control IC
The MC33814AE is a versatile dual-cylinder engine control IC utilizing SMARTMOS technology, designed for motor scooters, motorcycles, lawn equipment, and generators. It integrates six low-side drivers, three pre-drivers, a 5.0 V regulator for the MCU, protected sensor supplies, diagnostic features, and advanced noise immunity systems like VRS. Capable of controlling ignition, fuel injectors, relays, lamps, and tachometers, it ensures high safety, reliability, and adaptable operation in automotive and small engine applications. Its extensive set of protection and diagnostic features make it ideal for modern engine management systems.
NXP MC33814AE Small Engine Control IC Specifications:
- Operating Voltage Range: 6.0 V to 45 V
- VCC Output Voltage: 5.0 V (54 V max), VPROT tracks VCC
- Supply Currents: 10-14 mA (outputs disabled), 20-25 mA (sleep)
- Power Dissipation: Junction-to-Ambient 29°C/W, Junction-to-Case 2.4°C/W
- Input Voltage Range: VKEYSW up to 18 V, VRS inputs -0.5 to 6 V
- Maximum Continuous Output Current: 200 mA (VCC), 100 mA (VPROT)
- Static Electrical Ratings: VPP_EXT up to 45 V, VEOS, VPROT max 7 V
- ESD Protection: 2000 V (HBM), 750 V (CDM)
- Package: 48-Pin LQFP-EP with exposed pad
- Operating Temperature: -40°C to 125°C, Junction: -40°C to 150°C
- Reflow Temperature (Peak): Max 260°C
- Pin Pitch: 0.5 mm
Buy the Buy NXP MC33814AE Small Engine Control Part Number MC33814AE Online
Order the NXP MC33814AE small engine control IC online today and streamline your engine management system with six drivers, protected sensor supplies, diagnostic features, and noise immunity. Designed for motorcycles, lawn equipment, and generators, this highly integrated IC offers reliable operation, comprehensive fault detection, and safety features. With fast delivery and genuine quality, upgrading your engine control system has never been easier. Improve efficiency, safety, and performance by purchasing MC33814AE now for your automotive or small engine project.
Buy NXP MC33814AE small engine control IC now and experience unmatched reliability, integrated diagnostics, and advanced noise immunity for your motorcycle or generator application.
