NXP NX20P3483UKAZ USB Power Switch
The NX20P3483UK is a high-performance USB Power Delivery and Type-C combo switch designed for versatile power management in portable devices. It integrates bidirectional high voltage power switches supporting 20V sink and 6V source with overvoltage, reverse current, and safety protections, along with a 5V switch and a 100mA LDO for dead battery operation. The device offers adjustable overcurrent limit, slew rate control, and various protection features, controlled via I2C bus. It is ideal for notebooks, tablets, smartphones, and USB PD applications requiring efficient and protected power switching.
NXP NX20P3483UKAZ USB Power Switch Specifications:
- Supply Voltage Range VBUS: 2.8V to 20V
- System Power Supply V5V: 4.0V to 5.5V
- Chip Power Supply VDD: 2.7V to 5.5V
- Maximum Continuous Current: 3.4A
- Overvoltage Protection: Supports +95V on VBUS
- Under-Voltage Lockout: Yes
- Over-Temperature Protection: Yes
- Reverse Current Protection: Yes
- Surge Protection: IEC 61000-4-5 exceeding +95V / +100V
- ESD Protection: IEC 61000-4-2 contact discharge up to 8kV, air up to 15kV
- Operating Temp Range: -40°C to +85°C
- Package: WLCSP42, 0.4mm pitch, dimensions 2.51 x 2.91 x 0.525mm

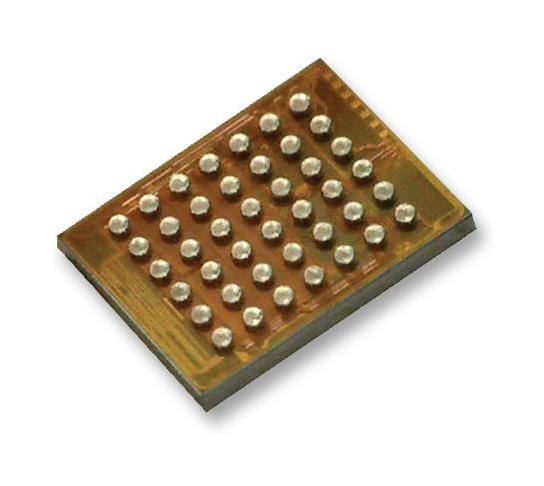

Buy the Buy NXP NX20P3483UK Part Number NX20P3483UKAZ Online
Purchase the NXP NX20P3483UK USB Power Switch online for reliable, protected, and efficient power management in portable devices. This high-voltage bidirectional switch supports 20V sink and 6V source operations, with built-in surge, reverse current, and thermal protections. Its integrated 5V switch and low dropout regulator enable seamless operation even during dead battery situations. With adjustable overcurrent, slew rate control, and I2C programmability, this device ensures safe, adaptable power switching for notebooks, tablets, and smartphones, optimizing device performance and safety.
Get NXP NX20P3483UK today—built for precision, with integrated protection features ideal for USB PD applications.
Frequently Asked Questions
Where can I buy NXP NX20P3483UKAZ?
You can click on the BUY or RFQ button to purchase NX20P3483UKAZ from an authorized NXP distributor.
How do I troubleshoot issues or seek technical support for part NX20P3483UKAZ?
You can download the NX20P3483UKAZ datasheet or visit the NXP website for support.
Who is the manufacturer of NX20P3483UKAZ?
NXP
