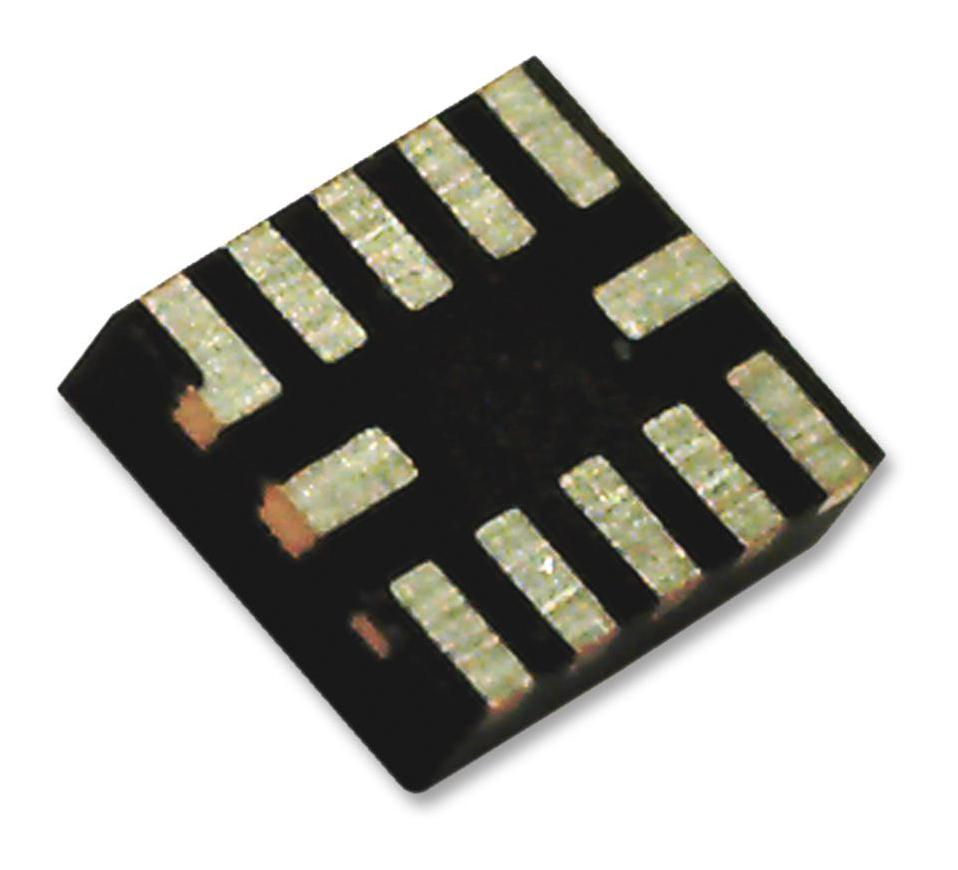

NXP NTS0104GU12115 Voltage Level Translator
The NTS0104 is a versatile 4-bit dual supply translating transceiver with auto direction sensing and open-drain outputs. It supports bidirectional voltage level translation between 1.65 V and 5.5 V, making it suitable for interfacing devices operating at different voltage levels such as 1.8 V, 3.3 V, and 5.0 V. It features high data rates up to 50 Mbps, power-down modes, and robust ESD protection. Compact package options include TSSOP14, DHVQFN14, XQFN12, and wafer-level chip scale packages, ensuring versatile integration in various electronic systems.
NXP NTS0104GU12115 Voltage Level Translator Specifications:
- Supply Voltage (A side): 1.65 V to 3.6 V
- Supply Voltage (B side): 2.3 V to 5.5 V
- Data Rate: Up to 50 Mbps
- Propagation Delay: 3.2 to 8.5 ns depending on voltage
- Input Voltage: Up to 5.5 V
- Output Enable Time: 200 ns
- Power Dissipation: Max 250 mW
- Temperature Range: -40°C to +125°C
- Package Options: TSSOP14, DHVQFN14, XQFN12, WLCSP12
- ESD Protection: Exceeds 2500V (HBM), 8000V (IEC61000-4-2)
- Operation: Partial Power-down Mode, auto direction sensing
- Dimensions vary with package, e.g., TSSOP14 body width 4.4 mm
Buy the NXP Series Transceiver: Level Translator 4-bit NTS0104GU12115
Purchase the NXP NTS0104GU12115 online today for high-speed, reliable voltage level translation. Its compact design, auto direction sensing, and open-drain outputs make it ideal for interfacing between different voltage systems like 1.8 V, 3.3 V, and 5.0 V. Featuring robust ESD protection, multiple package options, and operation across a wide temperature range, this transceiver ensures efficient performance in various industrial and consumer electronic applications. Order now to integrate this versatile component into your design for enhanced system compatibility and signal integrity.
Get NXP NTS0104GU12115 today—built for precision and long-lasting durability in voltage level translation applications.
Frequently Asked Questions
Where can I buy NXP NTS0104GU12115?
You can click on the BUY or RFQ button to purchase NTS0104GU12115 from an authorized NXP distributor.
How do I troubleshoot issues or seek technical support for part NTS0104GU12115?
You can download the NTS0104GU12115 datasheet or visit the NXP website for support.
Who is the manufacturer of NTS0104GU12115?
NXP
