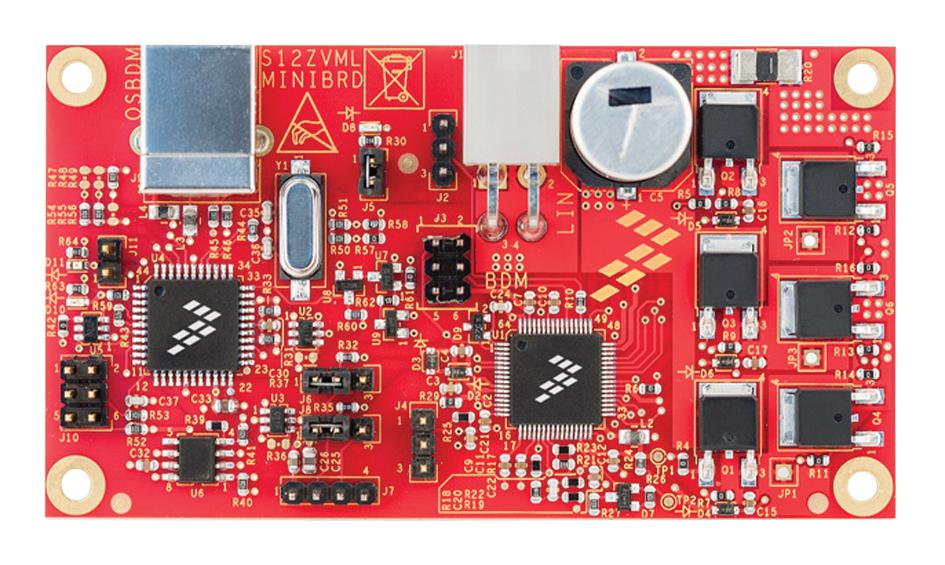

NXP S12ZVMLMINIBRD S12ZVM Microcontroller
The NXP S12ZVML-MINIBRD is a microcontroller belonging to the S12ZVM family, designed for a wide array of industrial and automotive applications. It incorporates a central processor unit (CPU), embedded memory, and various modules such as the Clock, Reset, and Power Management Unit (CPMU), Timer, Pulse Width Modulator with Fault Protection (PMF), and LIN physical layer transceiver. The device offers flexibility with different masksets and module versions, catering to specific application requirements. Refer to the family member comparison table and module revision histories for detailed specifications and differences between variants.
NXP S12ZVMLMINIBRD S12ZVM Microcontroller Specifications:
- Revision History: Updated family derivative table for S12ZVML32, S12ZVM32 and S12ZVM16 devices; Added 64KB, 32KB and 16KB derivative information to flash module chapter; Added pin routing options for S12ZVM32 and S12ZVM16 devices; Added HV Phy information for the S12ZVM32 and S12ZVM16 derivatives; Updated Part ID assignment table and ordering information for S12ZVM32 and S12ZVM16; Corrected PLL VCO maximum frequency specification; Changed VLVLSAmaximum from 7V to 6.9V; Added electrical parameter for HD division ratio through the phase multiplexer; Corrected preferred VRL reference from VRL_1 to VRL_0; Included NVM timing parameters for the S12ZVM32 and S12ZVM16 devices; Added GDU S12ZVM32 and S12ZVM16 specific differences and electrical specifications; Added references to fWSTAT; Added VDDX short circuit fall back current and temperature/input dependency specs.
- Electrical Parameter Classification: Removed
- Operating Range: Extended GDU operating range from 26V to 26.6V
- Temperature Sensor Output: Temperature sensor output at 150C changed from 2.25V to 2.33V
- Stop Current: Updated Stop current parameter values (ISUPS)
- LINPHY Parameter Range: Extended LINPHY specification range minimum to 5V and limit to 5.5V
- VDDS Regulator Parameters: Updated ZVMC256 VDDS regulator parameters
- Package Thermal Information: Updated package thermal information for ZVM32 and ZVM16 parts
Buy the S12ZVML-MINIBRD NXP S12ZVM Microcontroller | myMectronic
Purchase the NXP S12ZVML-MINIBRD securely and reliably through our online platform.
Buy Now
Frequently Asked Questions
Where can I buy NXP S12ZVMLMINIBRD?
You can click on the BUY or RFQ button to purchase S12ZVMLMINIBRD from an authorized NXP distributor.
How do I troubleshoot issues or seek technical support for part S12ZVMLMINIBRD?
You can download the S12ZVMLMINIBRD datasheet or visit the NXP website for support.
Who is the manufacturer of S12ZVMLMINIBRD?
NXP
