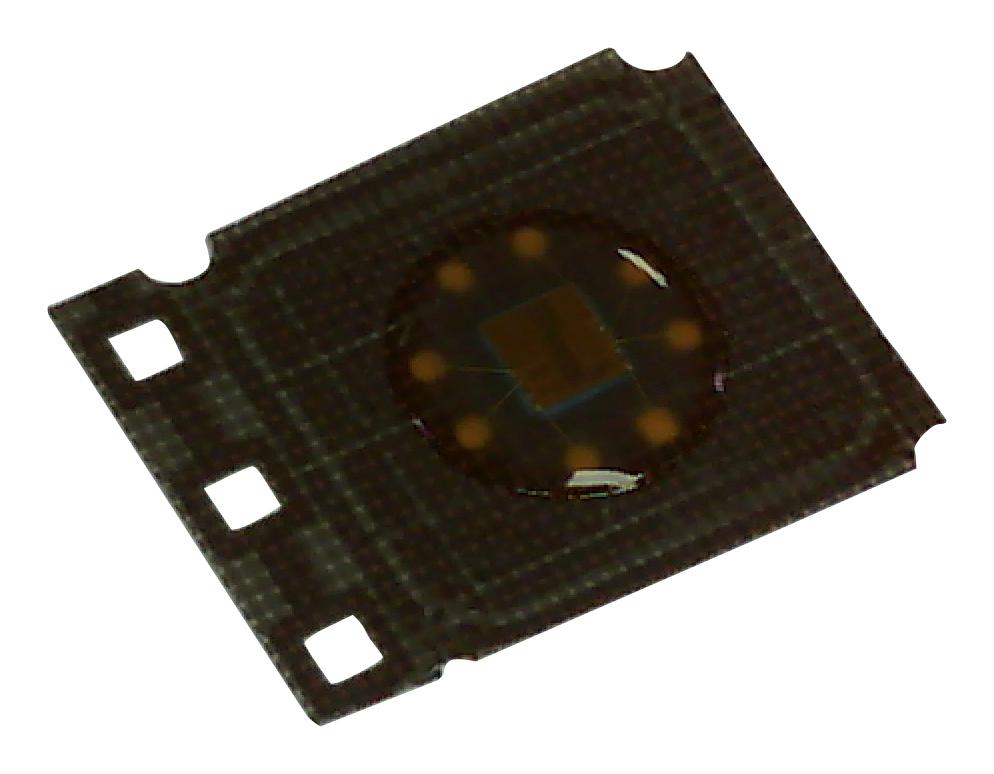

NXP P5DF081X0T1AD2060 Security Module
The MIFARE secure access module SAM AV2 is a versatile security component supporting TDEA, AES, and RSA cryptography. Designed for use with contactless cards like MIFARE and DESFire, it offers secure key storage, secure communication, and multiple authentication protocols. Compatible with various reader ICs supporting ISO/IEC 7816 and high-speed communication up to 1.5 Mbit/s, it provides enhanced security features such as key diversification, key counters, and PKI functionalities. Suitable for access management, micro payments, and transportation systems, the SAM AV2 ensures robust security for contactless applications.
NXP P5DF081X0T1AD2060 Security Module Specifications:
- Supported cryptography: TDEA, AES, RSA
- Supports ISO/IEC 7816 and high-speed transmission up to 1.5 Mbit/s
- Supported card types: MIFARE Ultralight, MIFARE Classic, DESFire, MIFARE Plus, SmartMx
- Connections: I2C, Serial, and proprietary interfaces
- Supply Voltage: 3 V to 5 V
- Operating Temperature: -25°C to +85°C
- Unique 7-byte UID
- Pin configuration: HVQFN32 package
- Supports secure messaging with key diversification and key counters
- PKI functions include RSA key generation, signature, and verification
- Supports multiple logical channels and sessions
- Supports hardware-based random number generation
Buy the NXP P5DF081 X0 – Reliable Security Module for Industrial Applications
Secure your contactless applications with the NXP P5DF081X0 MIFARE SAM AV2 security module. It offers robust cryptography support, secure key storage, PKI functionalities, and high-speed communication up to 1.5 Mbit/s. Designed for access management, micro payment systems, and transport solutions, this versatile module ensures reliable security for your contactless system. Easily integrated via I2C, serial, or proprietary interfaces, it provides advanced security features like key diversification and counters, making it the ideal choice for industrial and contactless applications.
Buy NXP P5DF081X0 now and experience unmatched security and performance for your contactless and NFC solutions.
Frequently Asked Questions
Where can I buy NXP P5DF081X0T1AD2060?
You can click on the BUY or RFQ button to purchase P5DF081X0T1AD2060 from an authorized NXP distributor.
How do I troubleshoot issues or seek technical support for part P5DF081X0T1AD2060?
You can download the P5DF081X0T1AD2060 datasheet or visit the NXP website for support.
Who is the manufacturer of P5DF081X0T1AD2060?
NXP
