NXP UCYCLONEFX CYCLONE Programmers

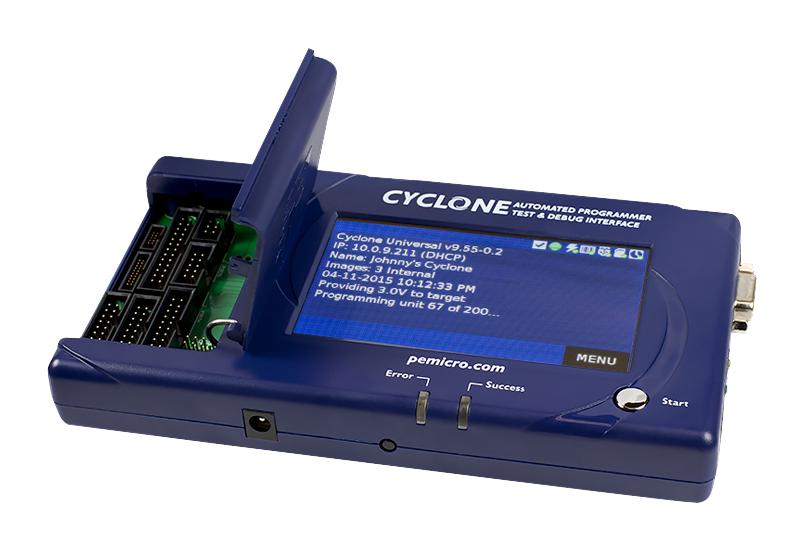

The CYCLONE programmer is a versatile, multi-architecture device supporting ARM Cortex, ColdFire, Kinetis, and other microcontrollers. It features multiple target connection ports including JTAG, SWD, and specialized headers for various architectures. Equipped with a touchscreen LCD, power management options, real-time clock, Ethernet, USB, and RS232 communication interfaces, it provides flexible power supply configurations, relay-controlled power cycling, and extensive target support. Designed for reliable, efficient programming and debugging, the CYCLONE ensures seamless target device operation across different power schemes and communication modes, suitable for professional development environments.
NXP UCYCLONEFX CYCLONE Programmers Specifications:
- Power Supply: Regulated 6V DC, 2.5/5.5mm female plug
- Communication Interfaces: Ethernet (10/100 BaseT), USB 2.0 Full-Speed, RS232 (115200 Baud, 8 Data bits, No parity, 1 Stop bit)
- Target Connection Ports: JTAG, SWD, 10/20/26/14/16/6-Pin headers supporting multiple architectures
- Relay Specifications: Max power 30W or 125 VA, Max current 1A, Max voltage 150VDC or 300VAC
- Power Relays: Electronically controlled, switch target power supply and debug power
- Real Time Clock: Built-in RTC module for maintaining date and time
- User Interface: 3.5-inch touchscreen LCD with configurable display options
- Physical Dimensions: Approximately 6.0 x 4.5 x 1.8 inches, weight approximately 1.5 kg
- Supported Device Architectures: ARM Cortex, ColdFire, Kinetis, S32, SPC5, PowerPC MPC5xx/8xx, RS08, HCS08, S12Z, MC56F8xxx, ColdFire V1/2/3/4
- Operation Temperature: 0°C to 50°C, Humidity: 10-90% non-condensing
- Certifications: CE, UL Listed, RoHS compliant
Buy the Buy PEmicro CYCLONE Programmer Support ARM Cortex ColdFire Kinetis Part Number UCYCLONEFX Online
Enhance your embedded development workflow with the CYCLONE programmer, offering comprehensive device support, flexible power management, and multiple communication interfaces. Perfect for professionals, it provides reliable connection options including JTAG, SWD, Ethernet, and USB, alongside relay-controlled target power cycling for efficient debugging. Its user-friendly touchscreen enables easy configuration, while robust hardware ensures durability and precision in programming complex microcontrollers. Order online now to simplify your development process and ensure seamless target device management with the CYCLONE.
Get PEmicro CYCLONE support ARM Cortex, ColdFire, Kinetis devices today—built for precision and long-lasting durability.
Frequently Asked Questions
Where can I buy NXP UCYCLONEFX?
You can click on the BUY or RFQ button to purchase UCYCLONEFX from an authorized NXP distributor.
How do I troubleshoot issues or seek technical support for part UCYCLONEFX?
You can download the UCYCLONEFX datasheet or visit the NXP website for support.
Who is the manufacturer of UCYCLONEFX?
NXP
