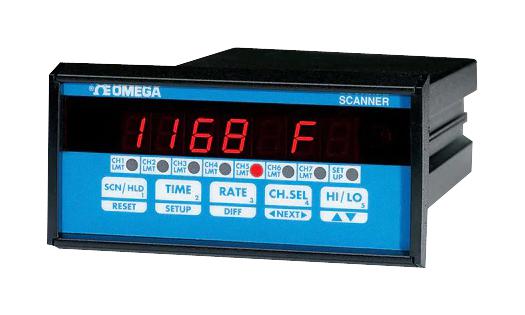

OMEGA DPS3207TC Process Scanner
The DPS3207TC is a 7-channel programmable process scanner designed for industrial temperature, voltage, and current measurements. It offers flexible input configurations, with channels independently programmable for various signal types including thermocouples and analog signals. Features include optional alarms, adjustable scan rates up to 2 channels per second, and a 4-digit display. Its compact design fits standard DIN panels, supporting precise scaling and display modes such as highest, lowest, deviation from setpoints, and differential measurements. Ideal for process control and automation applications requiring reliable, multi-channel monitoring.
OMEGA DPS3207TC Process Scanner Specifications:
- Accuracy: 0.5% reading for voltage and current inputs; 1°C for thermocouples
- Input Types: Thermocouple J, K, T, E, and process voltage/current ( scaled to engineering units )
- Scale: 1 to 30,000 units, resolution of 0.025% FS
- Display: 4-digit plus 3 alphanumeric characters, optional up to 999 seconds display time
- Power Supply: 120 Vac, 50/60 Hz or 240 Vac, 50 Hz (optional); 9 to 15 Vdc (optional)
- Scan Rate: Fixed at 2 channels/second
- Output Options: Mechanical relays (SPST, 1 A @ 28 Vdc or 0.5 A @ 120 Vac), 4 to 20 mA, 0 to 10 Vdc
- Dimensions: 57 mm H x 112 mm W x 178 mm D; cutout 45 x 92 mm
- Weight: 1.2 kg
- Additional features include optional alarms, scaling, and multiple operating modes for diverse industrial applications.
Buy the Omega DPS3207TC – Reliable Multi-Channel Process Scanner for Industrial Applications
Enhance your automation system with the Omega DPS3207TC process scanner, offering seven independently programmable channels for temperature, voltage, and current measurement. Its high accuracy, flexible input configurations, and DIN-rail mounting make it ideal for industrial process control. Featuring optional alarms, adjustable scan rates, and multiple display modes, this scanner ensures precise monitoring and reliable operation. Order online today to improve your process efficiency and achieve superior measurement reliability in industrial environments.
Buy Omega DPS3207TC now and experience unmatched reliability and versatile multi-channel process monitoring for industrial applications.
